Correct installation of Side Channel Blowers is crucial to ensure maximum efficiency, reliability, and lifespan. Among the most frequent problems in industrial settings are installation errors in the inlet and outlet piping, which can lead to turbulence, energy waste, system failure, or even equipment damage. Below are the five most common mistakes and precise recommendations for proper setup.
Poorly designed or installed piping increases system resistance, causes vibration and noise, and can overload the motor, leading to premature failure. Proper piping guarantees smooth airflow, optimizes blower performance, and minimizes maintenance costs.
Selecting pipework with the wrong diameter is a serious and common issue. Undersized piping restricts airflow, leading to higher pressure drops and overworked blowers. Oversized piping, conversely, can result in flow instability and increased backpressure.

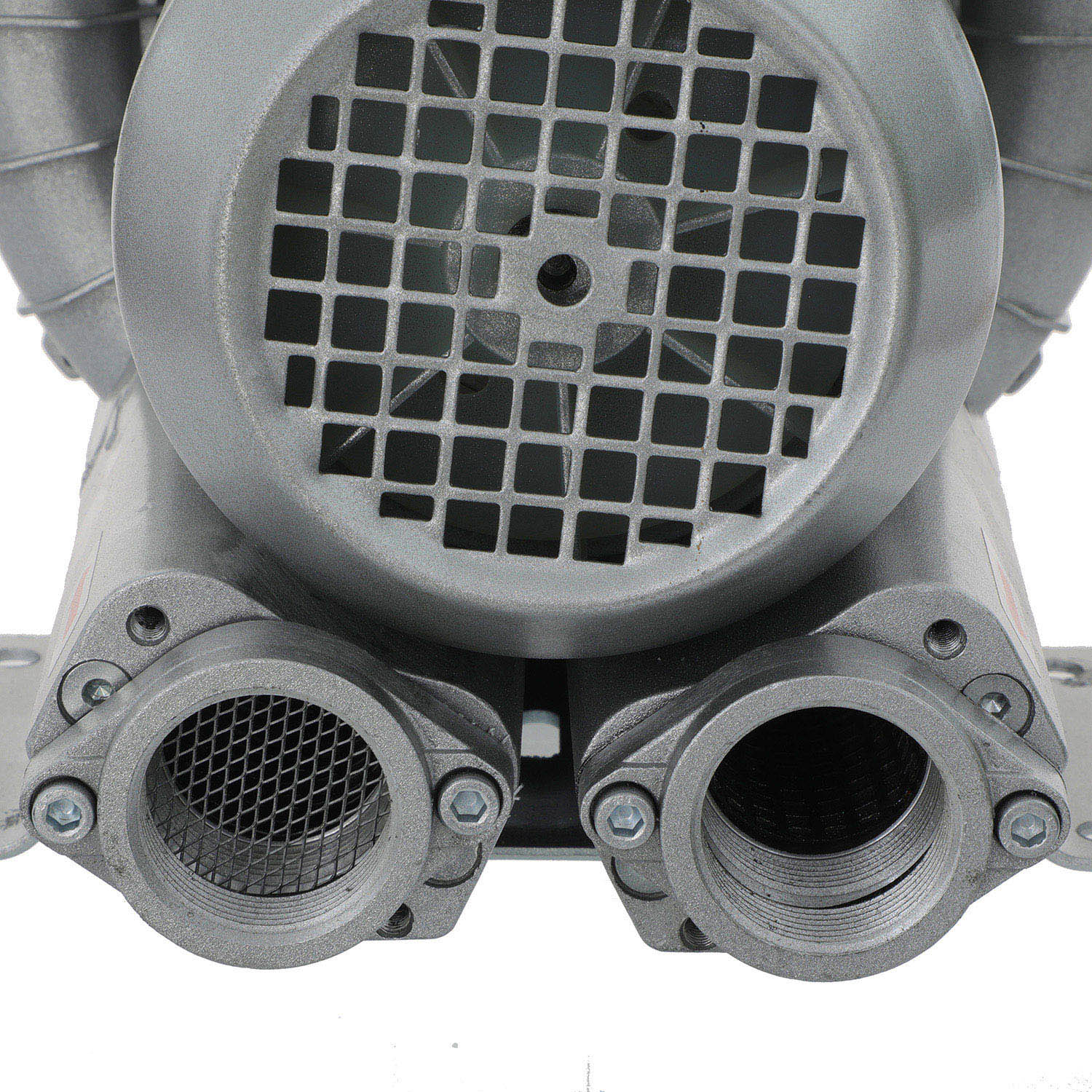

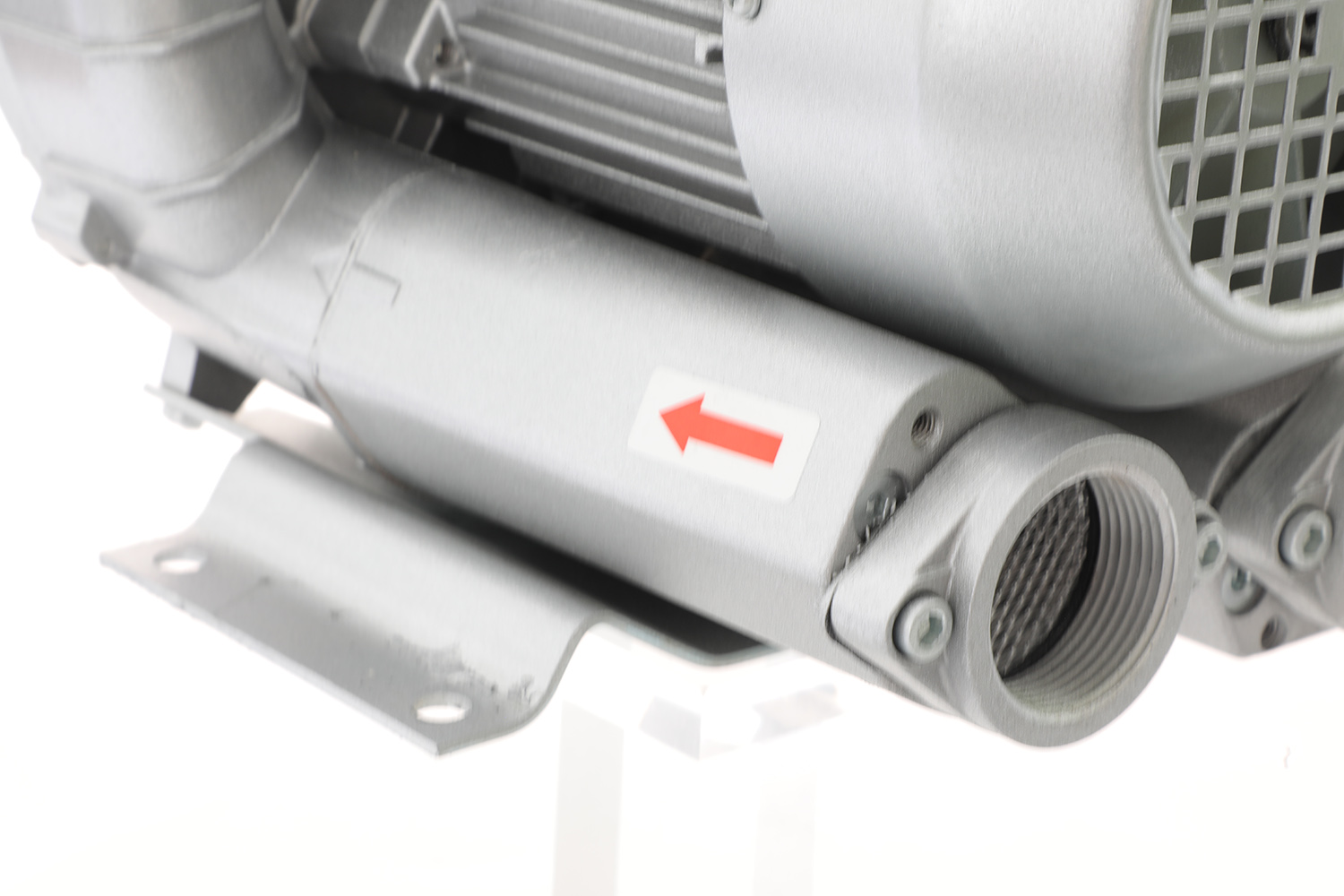

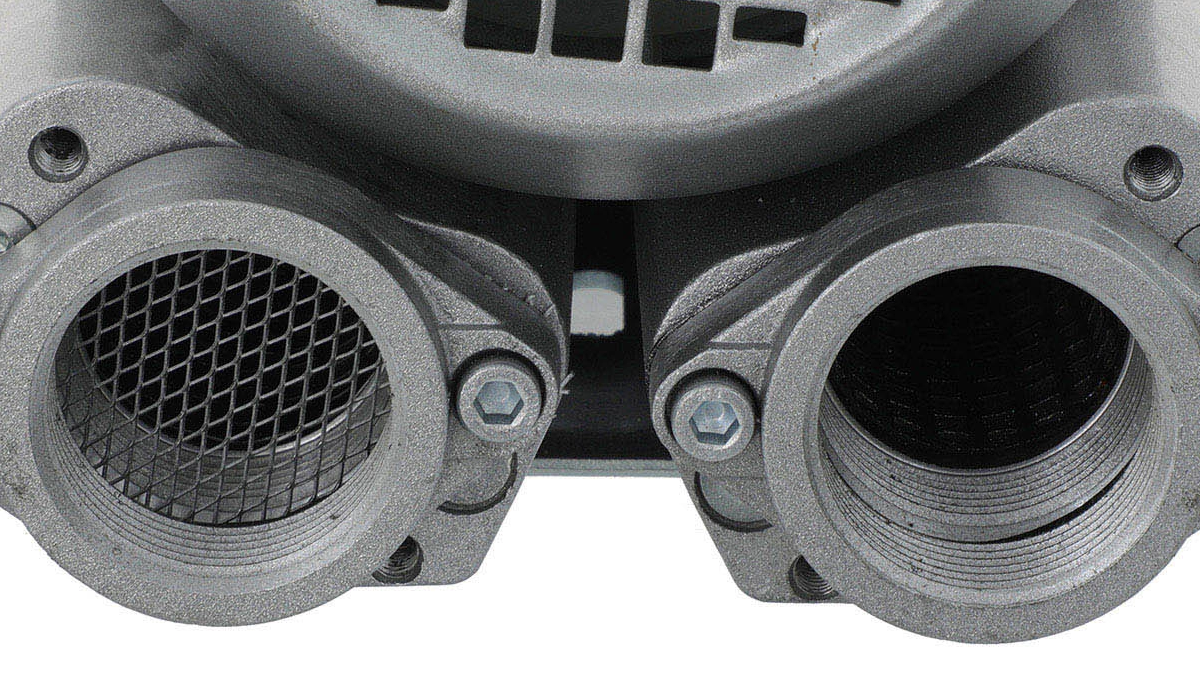

Match the piping diameter to the blower's inlet and outlet specifications.
Slightly increase the diameter if long runs or multiple bends are involved to reduce friction loss.
Choose pipes with a smooth interior finish to minimize turbulence.

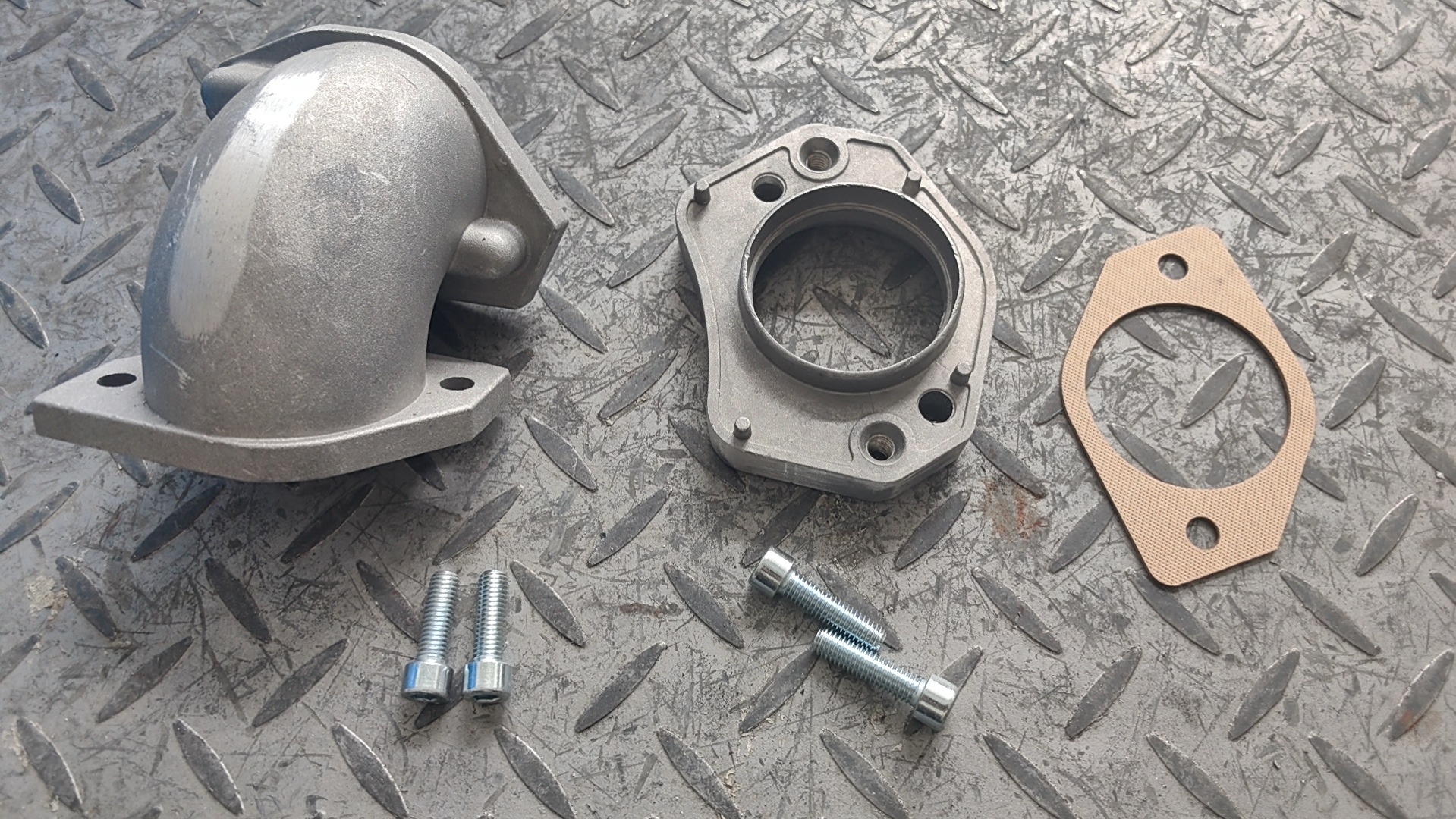

Installing elbows or direction changes too close to the blower leads to airflow disruption. The blower relies on steady, uniform airflow. Turbulence near the blower results in vibration, noise, and reduced output.
Maintain a straight pipe length equal to at least 5 to 10 times the pipe diameter immediately before the inlet and after the outlet.
Use long-radius elbows when directional changes are necessary.
Avoid “S-shaped” or complex routing unless professionally designed.
Side channel blowers often operate at high speeds, generating vibrations. Without vibration isolators or expansion joints, these forces transfer directly to rigid piping, leading to cracks, misalignment, and leaks. Thermal expansion from temperature fluctuations can also exert damaging stress.
Use flexible connectors or expansion joints at both inlet and outlet.
Employ anti-vibration pads or rubber gaskets to absorb mechanical stress.
Periodically inspect alignment and connection points to ensure long-term stability.

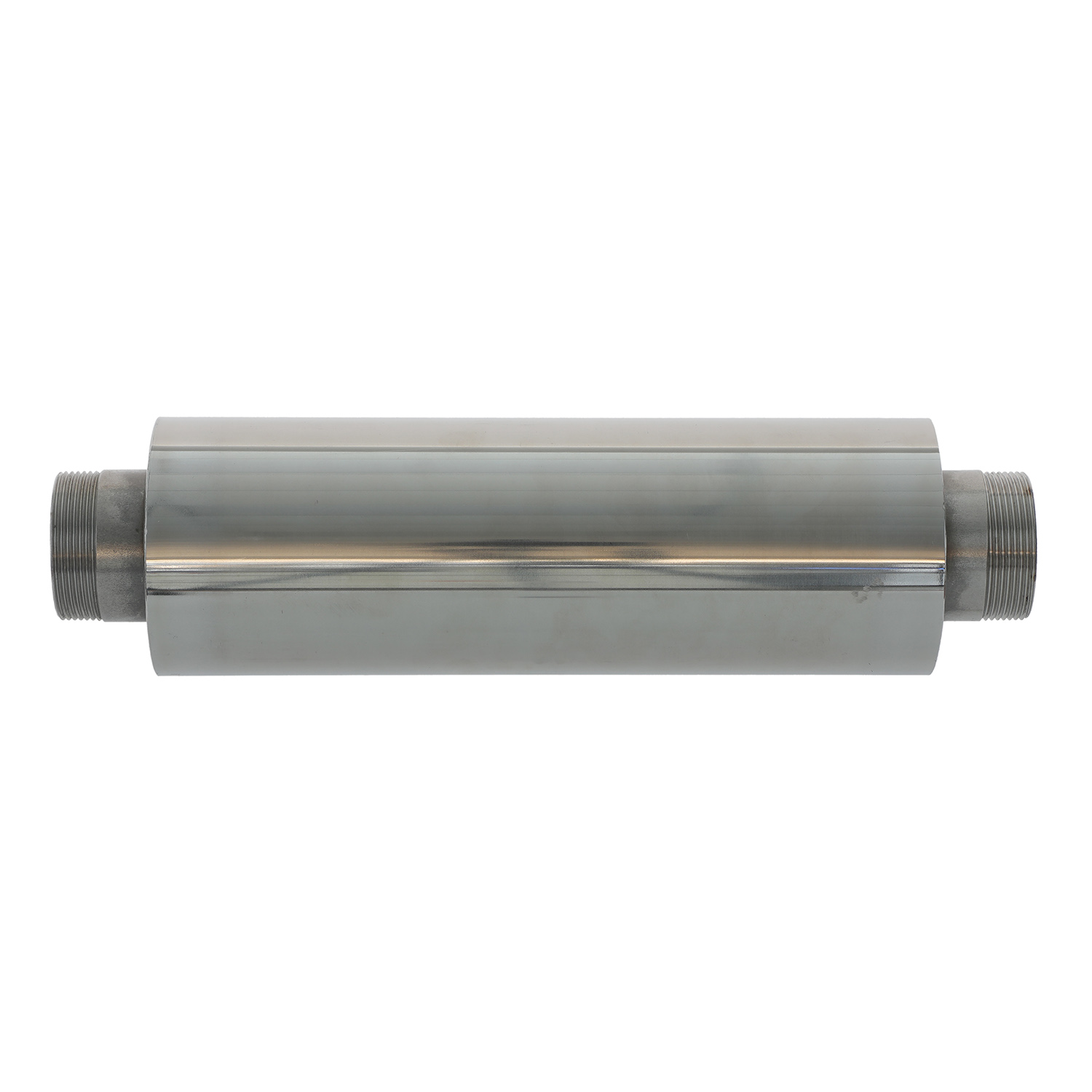

While filters and silencers are vital for clean and quiet operation, their incorrect placement often becomes a source of resistance. Mounting filters too far or without support causes sagging or disconnection, hindering airflow.
Position filters and silencers as close to the blower as possible, while ensuring accessibility.
Properly support and align these accessories to avoid stress on fittings.
Choose low-resistance models suited for high-speed airflow and clean them regularly to prevent clogging.
Side channel blowers are sensitive to system resistance because they are non-positive displacement machines. High outlet backpressure can cause motor overload, overheating, or failure. In systems with multiple outlets, poor load distribution causes unbalanced airflow.
Keep overall system resistance within the blower’s performance range.
Install pressure relief valves or bypass valves when needed.

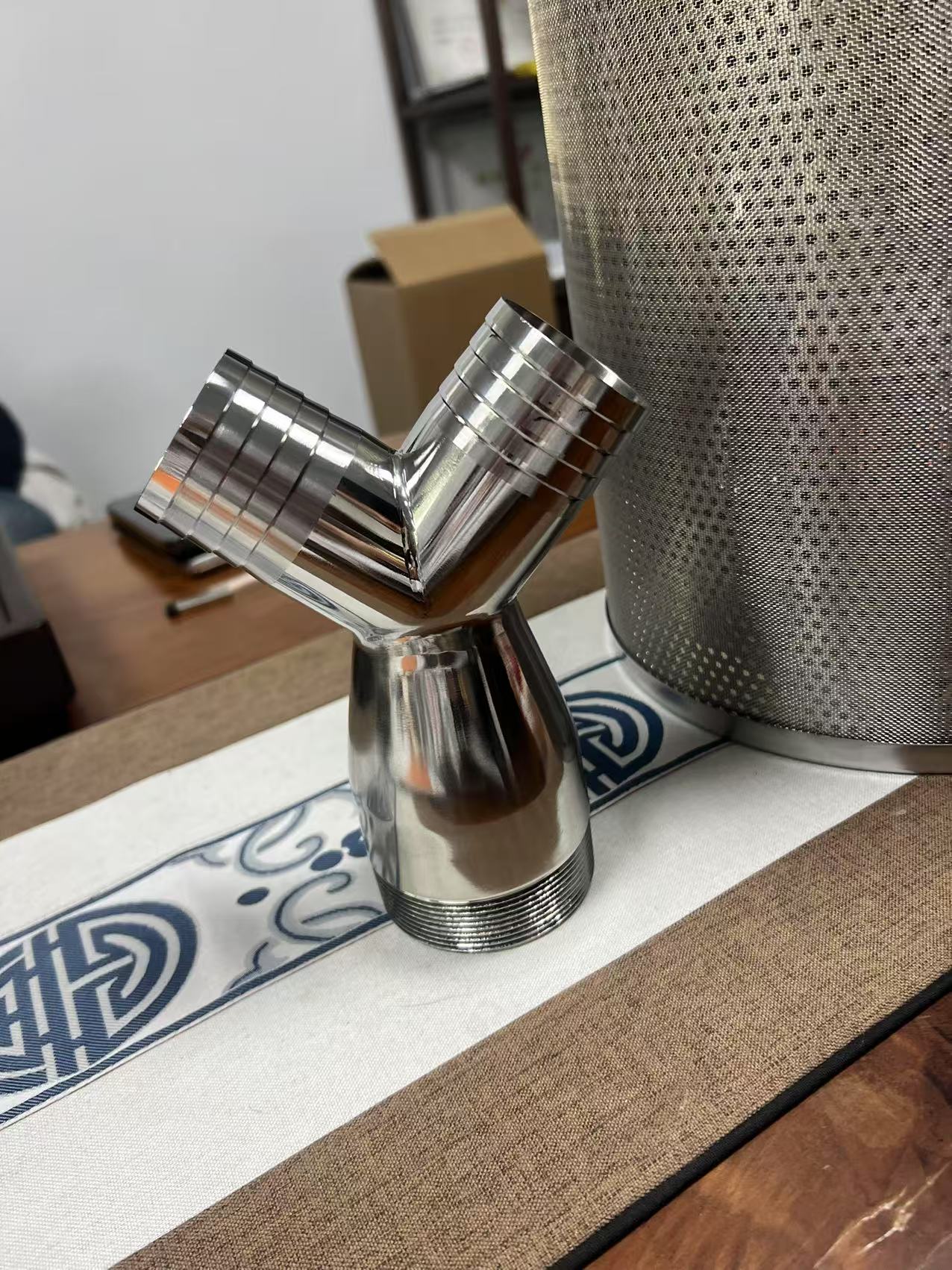

Use air balancing valves and properly designed manifolds for systems with multiple branches.
Avoid excessive lengths or unnecessary elbows in the outlet piping to reduce friction losses.
Avoiding these five common mistakes in the installation of inlet and outlet piping is vital for achieving the full potential of any side channel blower system. Properly sized, aligned, and supported piping not only enhances performance but also prevents downtime, reduces maintenance costs, and extends equipment life.
A meticulously installed blower system is the foundation of efficient, stable, and safe industrial air handling.
