Side channel blower generates continuous airflow by transferring energy from a high-speed rotating impeller to the air inside an annular side channel. Unlike a conventional air compressor, it does not trap and compress a fixed volume of air. Instead, the air repeatedly passes through the rotating impeller and receives additional energy during each circulation cycle.
This regenerative process allows the blower to generate higher pressure than many conventional centrifugal fans while maintaining smooth, oil-free airflow. Side channel blowers are therefore widely used in wastewater treatment, pneumatic conveying, vacuum lifting, industrial drying, packaging, woodworking, and aquaculture.
Understanding how a side channel blower produces pressure requires examining its internal structure, airflow path, and regenerative compression principle.

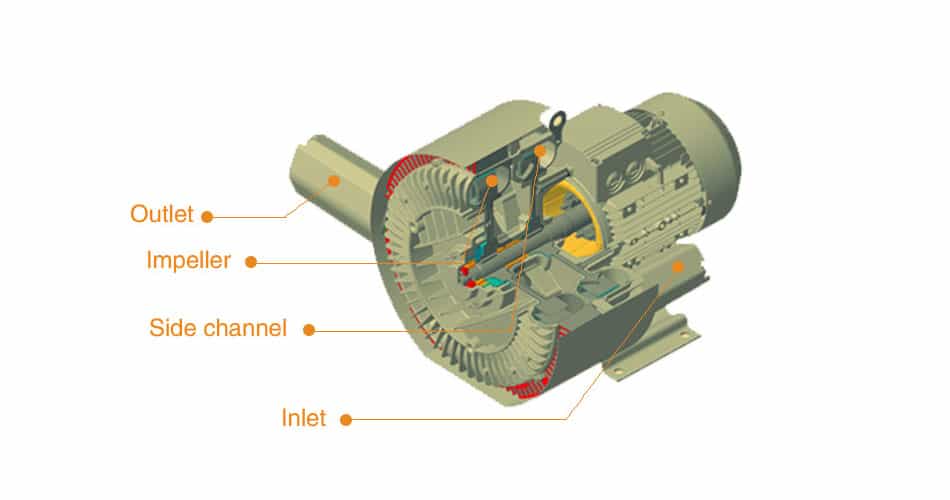

A side channel blower has a relatively compact mechanical structure. Its main components include the electric motor, impeller, blower housing, side channel, air inlet, air outlet, and bearings.
Although the construction appears simple, the shape and precision of these components directly affect airflow, pressure, efficiency, temperature, and noise.
The electric motor drives the impeller directly through the motor shaft. Most industrial side channel blowers use high-speed two-pole motors, typically operating at approximately 2,850 rpm on a 50 Hz power supply or 3,450 rpm on a 60 Hz power supply.
The motor converts electrical energy into mechanical rotational energy. This energy is then transferred to the air through the impeller.
The motor power must match the expected operating pressure and airflow. If the system resistance is too high, the motor may draw excessive current and generate additional heat.
The impeller is the primary energy-transfer component inside the blower. It is usually manufactured from aluminum alloy and contains multiple blades around its outer circumference.
When the impeller rotates, the blades accelerate the incoming air and push it toward the outer edge of the blower housing. The rotational motion increases the velocity and kinetic energy of the air.
Important impeller design factors include:
Impeller diameter
Blade quantity
Blade angle
Blade curvature
Rotational speed
Clearance between the impeller and housing
A well-designed impeller reduces turbulence and internal energy losses while maintaining stable pressure generation.
The side channel is the annular flow passage formed between the impeller and the blower housing. It surrounds most of the impeller circumference and guides the air as it travels through the blower.
Instead of moving directly from the inlet to the outlet, the air circulates repeatedly between the impeller blades and the side channel.
This repeated circulation is the key difference between a side channel blower and a conventional centrifugal fan.
Air enters the blower through the inlet port and leaves through the outlet port. A separation area inside the housing prevents discharged air from flowing directly back toward the inlet.
When the blower is used for positive-pressure operation, the outlet supplies pressurized air to the system. When it is used for vacuum operation, the inlet creates suction by drawing air out of the connected equipment or pipeline.
The internal working principle remains largely the same in both operating modes.
The bearings support the rotating shaft and allow the impeller to operate at high speed with minimal friction.
The impeller does not normally contact the blower housing. Because there is no internal rubbing between compression components, the airflow path does not require lubricating oil.
This structure allows a side channel blower to provide relatively clean and oil-free air.

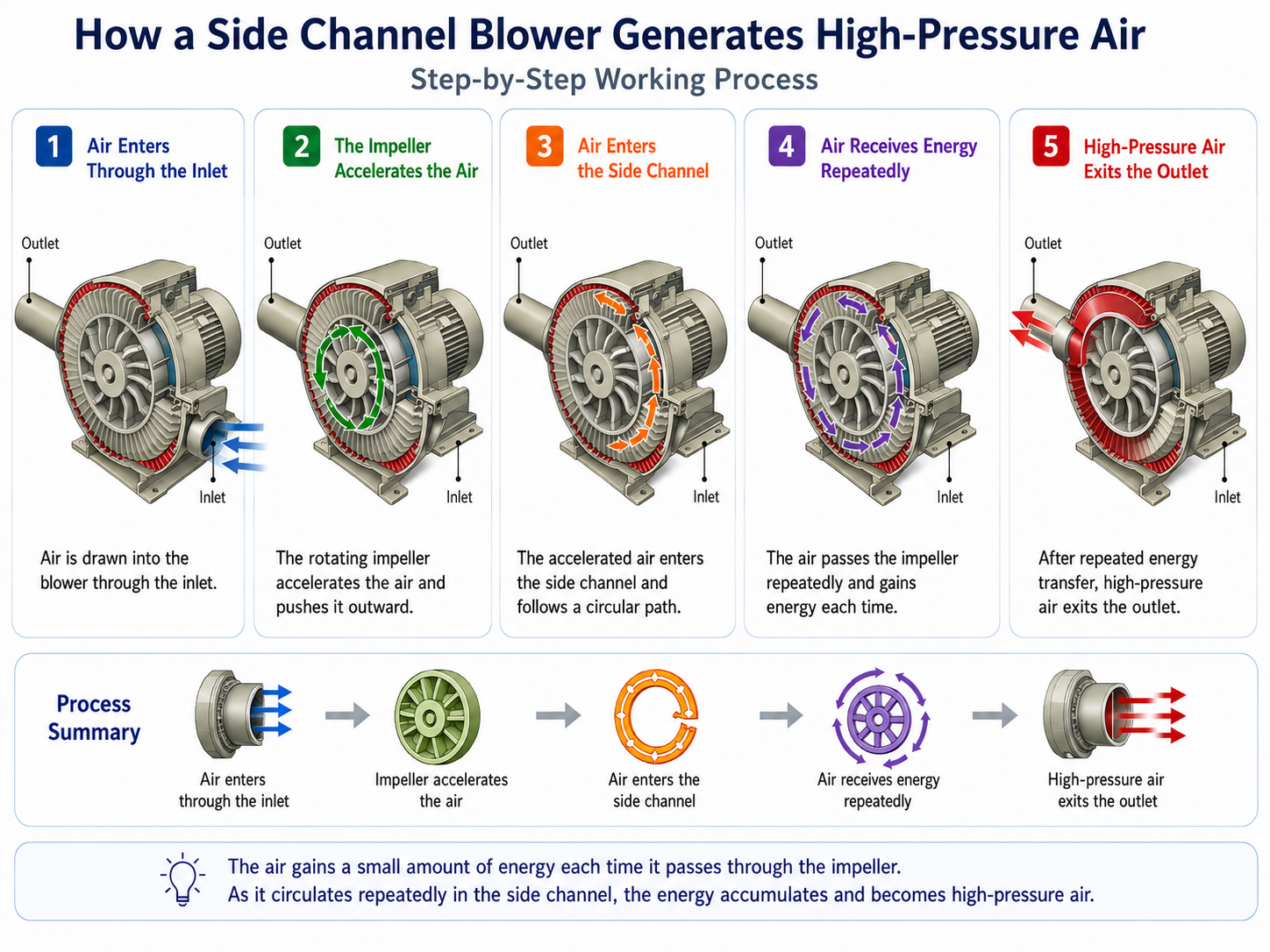

A side channel blower generates pressure through a sequence of continuous energy-transfer stages. The air receives small amounts of energy many times before reaching the outlet.
As the impeller rotates, it creates a pressure difference near the inlet. Atmospheric air or process air is drawn into the blower housing.
The incoming air enters the spaces between the impeller blades and begins moving with the rotating impeller.
The high-speed impeller transfers mechanical energy to the air. Centrifugal action moves the air outward from the center of the impeller toward the surrounding side channel.
At this stage, the air gains velocity and kinetic energy.
The amount of energy transferred depends on several factors:
Impeller speed
Impeller diameter
Blade geometry
Air density
Motor power
Internal flow resistance
A larger impeller or higher rotational speed can generally transfer more energy to the air, although the blower must remain within its rated operating range.
After leaving the impeller blades, the accelerated air enters the annular side channel.
The shape of the side channel redirects the airflow back toward the impeller. The air then enters another group of rotating blade passages.
This process creates a three-dimensional spiral or helical flow path around the impeller.
As the air moves through the side channel, it repeatedly re-enters the impeller blades. Each interaction adds another small amount of energy.
The sequence can be summarized as follows:
The impeller accelerates the air.
The air moves into the side channel.
The side channel redirects the air toward the impeller.
The air passes through the blades again.
Additional energy is transferred to the air.
The cycle continues around the blower housing.
This repeated energy transfer is called regenerative compression.
The pressure does not rise through a single compression event. Instead, it increases gradually as the air travels around the side channel.
During circulation, part of the air’s kinetic energy is converted into static pressure.
By the time the air approaches the outlet, it has passed through multiple energy-transfer cycles. The accumulated energy produces a pressure level significantly higher than that generated by an ordinary ventilation fan.
The air is then discharged through the outlet as a stable and continuous flow.
The ability to produce continuous pressure is based on regenerative energy transfer, non-contact operation, and uninterrupted impeller rotation.
A side channel blower is sometimes called a regenerative blower because the airflow repeatedly circulates between the impeller and the side channel.
Each circulation cycle “regenerates” the airflow by adding more energy. The cumulative effect of these small pressure increases produces the final discharge pressure.
This principle differs from conventional centrifugal fans, where the air usually passes through the impeller only once before leaving the housing.
The air inside a side channel blower interacts with the impeller blades many times during one passage from the inlet to the outlet.
Each interaction increases the energy of the air. Although the pressure increase from one interaction is relatively small, the total pressure rise becomes substantial after multiple cycles.
This allows side channel blowers to generate higher pressure than standard axial or centrifugal ventilation fans.
The impeller rotates continuously as long as the motor is running. Therefore, the energy-transfer process also remains continuous.
There are no reciprocating pistons, opening and closing cylinders, or compression chambers. As a result, the airflow is smooth and has relatively low pulsation.
This makes side channel blowers suitable for applications that require stable air delivery.
The impeller normally rotates without contacting the housing. This reduces mechanical wear and eliminates the need for oil inside the airflow path.
The non-contact structure provides several operational benefits:
Oil-free airflow
Low routine maintenance
Reduced mechanical wear
Stable continuous operation
Lower airflow pulsation
Compact equipment design
However, the internal clearances must be manufactured accurately. Excessive clearance can cause internal leakage and reduce pressure performance.
The number of stages has a major influence on blower pressure.
A single-stage blower generally contains one impeller and one main regenerative airflow path.
It can provide a balance between airflow and pressure and is suitable for applications such as:
Aeration
Air knife drying
Packaging equipment
Light pneumatic conveying
Vacuum holding
Industrial ventilation assistance
Single-stage models often provide higher airflow than similarly sized double-stage models, but their maximum pressure is usually lower.
A double-stage blower contains two impellers or two regenerative compression sections connected in series.
After the air receives energy in the first stage, it enters the second stage and undergoes another pressure-generation process.
Because the two stages operate in series, the final pressure is higher.
Double-stage blowers are suitable for applications involving:
Stronger vacuum requirements
Deeper aeration tanks
Long pipelines
Higher system resistance
Dense-phase or demanding pneumatic conveying
High-force vacuum adsorption
The second stage does not simply increase airflow. Its primary purpose is to increase the pressure or vacuum capability.
A side channel blower does not deliver its maximum airflow and maximum pressure at the same operating point.
When system resistance is low, the blower produces relatively high airflow and low pressure. As system resistance increases, pressure rises while airflow decreases.
At or near the maximum pressure point, the airflow may become very low.
This relationship is shown on the blower performance curve.
When selecting a blower, users should identify the actual operating point based on:
Required airflow
Required pressure or vacuum
Pipeline length
Pipe diameter
Number of bends
Filter resistance
Diffuser resistance
Equipment pressure loss
Safety margin
Selecting a blower only according to its maximum pressure can result in insufficient airflow during operation.
No. It is not a traditional positive-displacement compressor. It generates pressure mainly through regenerative energy transfer between the impeller and the side channel.
Yes. It can provide continuous low- to medium-high-pressure airflow. However, it usually cannot replace an air compressor in applications requiring several bars of pressure.
After the air is pressurized in the first stage, it enters the second stage and receives additional energy. The series configuration allows the blower to overcome higher system resistance.
Usually not. As the blower approaches its maximum pressure, the actual airflow decreases significantly. The specific operating condition should be determined according to the performance curve.
Possible causes include:
The selected blower model is too small
Leakage in the pipeline or connections
Incorrect motor rotation direction
Incorrect voltage or frequency
A blocked filter
System resistance exceeding the blower’s operating range
A side channel blower generates high-pressure air by repeatedly transferring energy from a high-speed impeller to the air inside an annular side channel.
The air enters through the inlet, is accelerated by the impeller, moves into the side channel, and then returns to the rotating blades. This regenerative cycle occurs many times before the air reaches the outlet.
Each cycle adds energy, allowing the pressure to rise gradually and continuously. Because the impeller does not normally contact the housing, the blower can provide smooth, oil-free airflow with relatively low maintenance requirements.
The final pressure and airflow depend on the impeller design, rotational speed, number of stages, internal clearances, pipeline resistance, and actual operating point. For reliable performance, a side channel blower should always be selected according to its complete performance curve rather than its maximum pressure value alone.
