Air filters are essential in protecting blowers from dust, moisture, and airborne particles. The cleanliness of air intake directly affects the blower’s efficiency, service life, and noise level. Without proper filtration, contaminants can accumulate on the impeller or enter the motor housing, leading to imbalances, wear, and eventual failure.
For ring blowers, which operate with high rotational speeds and tight tolerances, maintaining a clean airflow is not optional—it’s critical. The air filter serves as the first line of defense, ensuring only clean air enters the system.
Ring blowers operate in two primary modes: vacuum (negative pressure) and pressure (positive pressure). Depending on the application, different types of air filters are selected to match the direction of airflow and the environmental conditions.

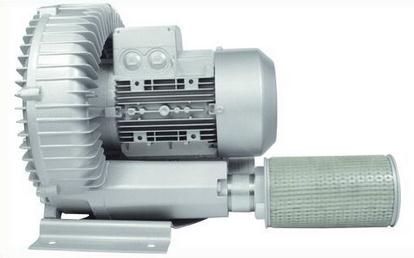

When the ring blower is used for suction or vacuum generation, the system pulls air through an intake port where dust and debris can be easily drawn in. To prevent these particles from reaching the blower’s impeller, a vacuum air filter—also known as a vacuum inlet filter—is installed at the suction side.
Key features include:
High dust-holding capacity to handle continuous airflow with contaminants.
Fine filtration efficiency, often using paper or polyester filter elements.
Compact design for easy installation at the inlet side.
Transparent or metal housings for visual inspection and durability.

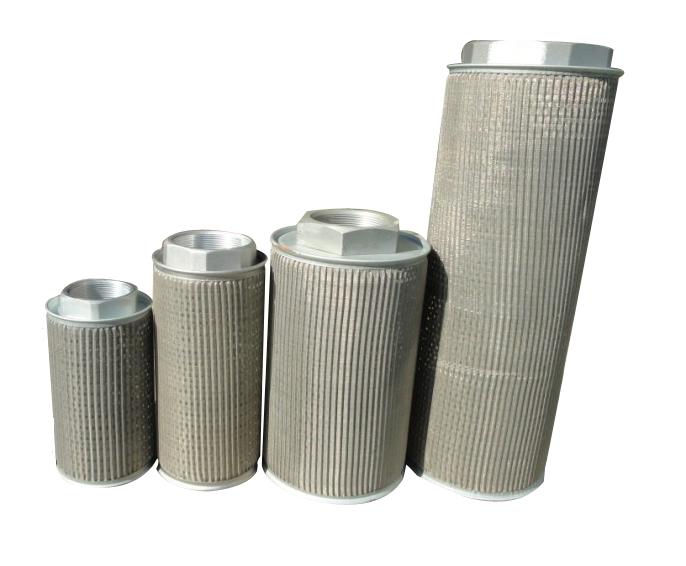

Vacuum filters typically have threaded connections, which allow direct mounting on the blower’s inlet. The micron rating of the filter can range from 5 to 50 microns, depending on environmental conditions.
When a ring blower is used to discharge or pressurize air, the filter placement changes. Instead of filtering intake air, a standard air filter (sometimes called a silencer filter or pressure-side filter) is used on the outlet to clean the discharged air before it enters downstream equipment.
Pressure-side filters are designed to:
Withstand higher pressure levels without deformation.
Prevent contamination of the working environment or connected equipment.
Reduce noise from air discharge when combined with mufflers.
These filters are often used in applications such as air knives, aeration tanks, pneumatic transport systems, and cooling lines, where clean output air is essential.
A common question arises among operators: can air filters be shared between different types of blowers—for instance, between ring blowers and Roots blowers?
The short answer is no.
While the basic function of filtering air remains the same, the mechanical design and connection standards differ significantly.
Ring blowers generally use threaded interfaces, which make filter installation simpler and more compact.
Roots blowers, on the other hand, use flange-type filters designed for higher capacity and pressure resistance.
Due to these design differences, filters cannot be universally applied across both blower types without using adapters—which are not recommended because they can introduce air leaks or pressure losses.
Roots blowers typically operate under higher pressure differentials and larger flow volumes, which demand stronger filter housings and higher dust capacity. Using a ring blower filter on a Roots blower can result in insufficient filtration, clogging, or even filter rupture under pressure.
Conversely, using a Roots-type filter on a smaller ring blower can cause overload due to airflow restriction and unnecessary pressure drop.
To maintain consistent airflow and prolong blower life, regular filter maintenance is crucial.
Inspect the air filter every 500–1000 operating hours, depending on environmental dust levels. A pressure gauge or vacuum indicator can be used to monitor filter clogging.
Paper filters should be replaced once they show significant dirt accumulation or airflow restriction.
Polyester and metal filters can often be cleaned with compressed air and reused several times.
Ensure that replacement filters match the original specifications in both micron rating and connection size.
Operating a ring blower with a clogged or damaged filter can lead to:
Reduced airflow and efficiency
Overheating and noise increase
Premature bearing wear or impeller damage
Thus, preventive maintenance is more cost-effective than reactive repairs.
The applicability of ring blower air filters is not a one-size-fits-all matter. The type of filter—whether for vacuum (negative pressure) or pressure (positive pressure)—must be chosen according to the blower’s working mode and installation position.
Moreover, filters are not interchangeable between ring blowers and other blower types like Roots blowers, mainly due to connection standards (threaded vs. flange) and pressure handling differences.
Proper selection and maintenance of ring blower air filters ensure optimal blower performance, longer service life, and consistent airflow purity—which are vital for any industrial application relying on clean and efficient air movement.
