Connectors are essential components in the operation and configuration of side channel blowers, serving as the link between the blower and various accessories, piping systems, or nozzles. Selecting the right type of connector not only ensures operational efficiency but also prevents issues such as leakage, pressure drops, or compatibility conflicts.
This guide provides a comprehensive overview of connector types, how to choose between internal and external threading, and the functional role connectors play in optimizing high-pressure blower systems.
A standard connector—also referred to as a straight-line connector—is the most common form used in side channel blower setups. These connectors typically join two parts of a hose or a hose to a device, ensuring a direct, secure, and leak-proof connection.
Use Case: Ideal for one-to-one piping connections.
Advantages: Simple to install, cost-effective, and compatible with most blower outlets/inlets.
Materials: Often made of aluminum alloy, stainless steel, or industrial-grade plastic for durability and corrosion resistance.
T-type connectors, shaped like the letter “T,” are used to split airflow into two directions or combine flows from two inlets into a single path. These are highly valuable in complex piping systems where multi-branch airflow distribution is required.
Use Case: Connecting one blower to two separate nozzles or directing airflow into different zones simultaneously.
Advantages: Enables multi-directional flow, reduces the need for additional blowers, saves energy.
Applications: Often seen in cooling, drying systems, pneumatic conveying, or aeration processes that require simultaneous outputs.
Choosing between standard and T-type connectors depends heavily on your system design, the number of outlets you need, and how you intend to distribute airflow.
Internal spiral connectors, or female connectors, are designed to receive external-threaded components. These are typically screwed onto a male-threaded pipe or fitting.
Advantages:
Provides a secure grip and minimizes the risk of detachment.
Often preferred for permanent or semi-permanent installations.
Less exposed threading, resulting in lower risk of corrosion and physical damage.
Use Case:
Systems requiring tight, vibration-resistant sealing.
Situations where space is limited, and the connector must not protrude.
External spiral connectors, or male connectors, are threaded onto the internal part of a coupling. These are usually used when frequent disassembly is expected or when connectors need to be readily accessible.
Advantages:
Easy to attach and detach.
Often more versatile in multi-component configurations.
Facilitates quick system modifications or maintenance.
Use Case:
Temporary setups or testing environments.
Systems with components that require frequent maintenance or swapping.
Connector threading should be selected based on the maintenance frequency, space availability, and the required pressure integrity of your high-pressure blower system.

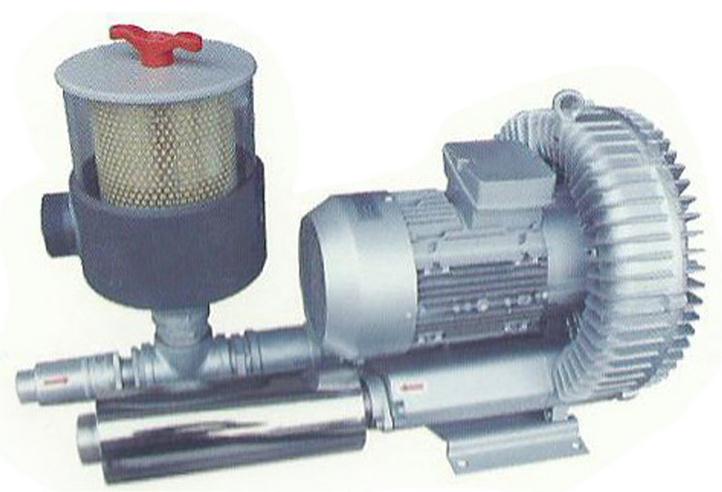

Connectors are the critical link between side channel blowers and their accessories, such as:
Air knives
Vacuum cups
Manifolds
Filter units
Silencers or mufflers
Flexible or rigid piping
Without suitable connectors, it would be impossible to tailor blower performance to specific application needs. For example, an air knife system used in drying applications must be connected securely to avoid air loss or vibration issues.
Connectors make blower systems modular. This means you can add or replace components—such as diverters, filters, or valves—without reconstructing the entire setup. This feature is invaluable for industries such as:
Food packaging
Chemical processing
Textile drying
Pharmaceuticals
The right connector allows operators to reconfigure systems based on seasonal demands, equipment upgrades, or new project requirements—all without compromising safety or efficiency.
A poorly matched connector can lead to:
Air leakage
Reduced flow rate
Vibration and noise issues
Energy inefficiency
Connectors engineered for high-pressure resistance help maintain the operational integrity of side channel blowers, especially under loads exceeding 1000 mbar. Materials must withstand not just pressure but also:
Heat generated from continuous operation
Corrosive gases
Dust particles or water vapor in the airflow
Strategically placed connectors allow for isolation of blower sections during maintenance or inspection. By simply removing a connector, technicians can:
Access filters or impellers
Replace damaged pipes
Perform leak checks or thermal inspections
Some connectors are equipped with quick-release features, enhancing maintenance speed and reducing downtime.
Choose connectors made from materials that match or outperform the blower housing material. For corrosive or humid environments, stainless steel or nickel-plated alloys are ideal.
Ensure compatibility with metric or BSP thread standards, depending on your region and machinery specs. Mismatched threads may cause thread stripping, leakage, or permanent damage.
Always inspect the sealing element. Look for connectors with integrated O-rings or PTFE (Teflon) gaskets to ensure an airtight connection even under high thermal cycling.
Plan for connector orientation that supports natural airflow. Avoid bends or twists that could lead to flow turbulence or increased backpressure.
If you anticipate future system expansion, consider T-type or multi-port connectors from the outset. This saves time and money when modifications are needed.
The right connector enhances every aspect of a side channel blower’s performance—from airflow distribution to system longevity. By understanding the differences between standard vs. T-type designs, choosing internal or external threading wisely, and ensuring compatibility with high-pressure requirements, operators can build robust and flexible air systems for industrial use.
In blower configurations where reliability, performance, and adaptability are non-negotiable, connectors are not an afterthought—they’re a strategic component.
