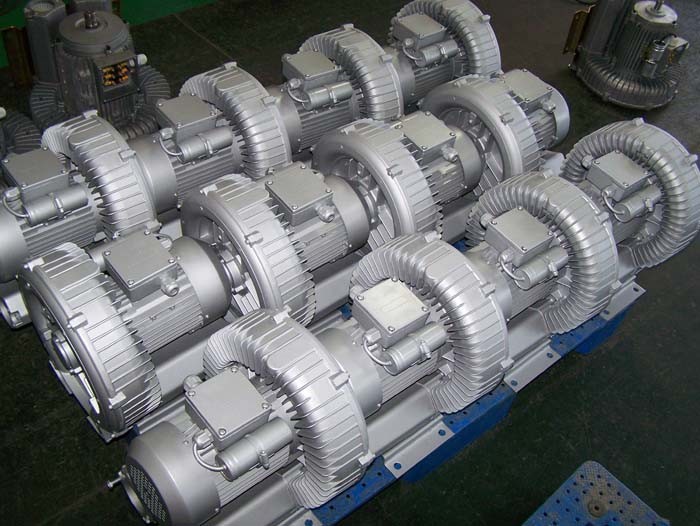

In modern material handling—from glass processing to automated logistics—the reliability of a vacuum lifting system depends entirely on its air source. While various technologies exist, Ring Blowers (also known as side channel blowers) have become the industry standard for applications where uptime and safety are non-negotiable.
Unlike traditional pumps, ring blowers offer a high-flow, low-maintenance solution that balances energy efficiency with the robust suction power required for industrial-scale lifting.
The ring blower operates on a frictionless, side-channel principle. As the impeller spins, centrifugal force accelerates the air through a series of "re-compressions" within the casing. This design allows the blower to generate significant vacuum levels without any internal contact between moving parts.
For vacuum lifting, this translates to 100% oil-free suction. This is a critical advantage, ensuring that sensitive materials—such as coated glass, polished metal, or food-grade packaging—remain pristine and uncontaminated during the move.

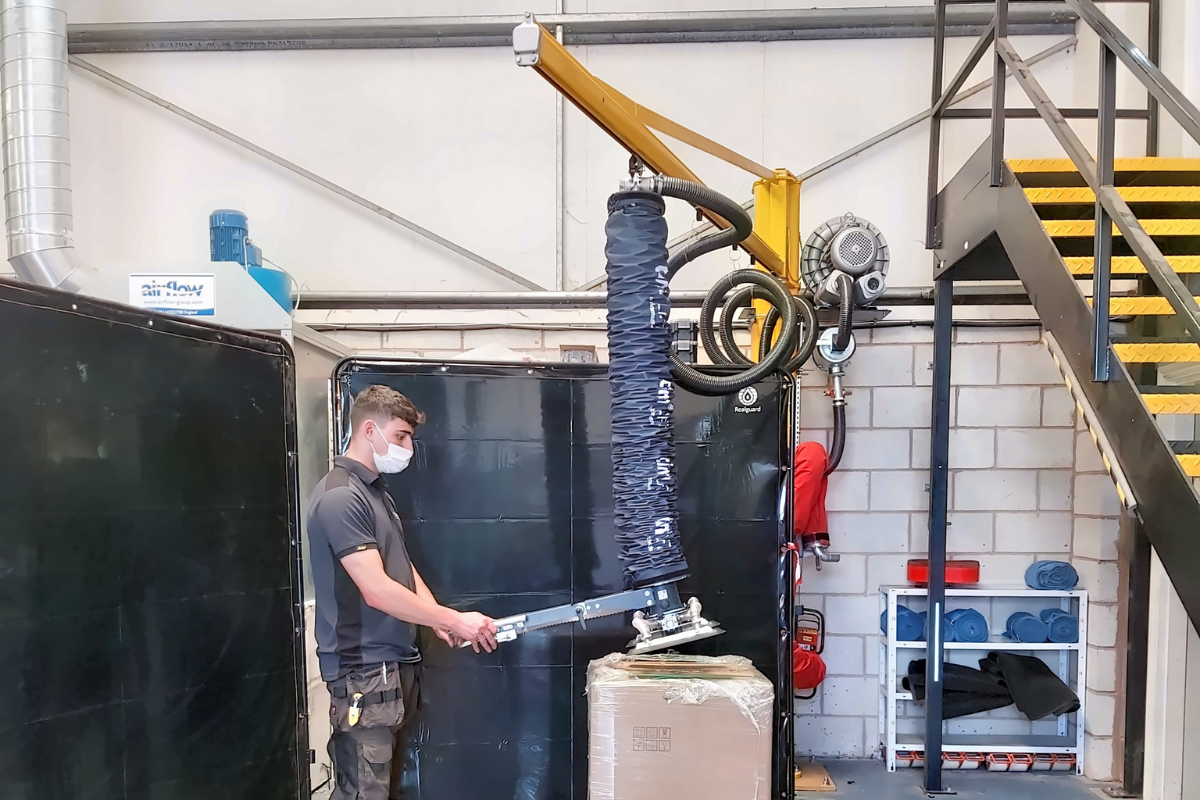

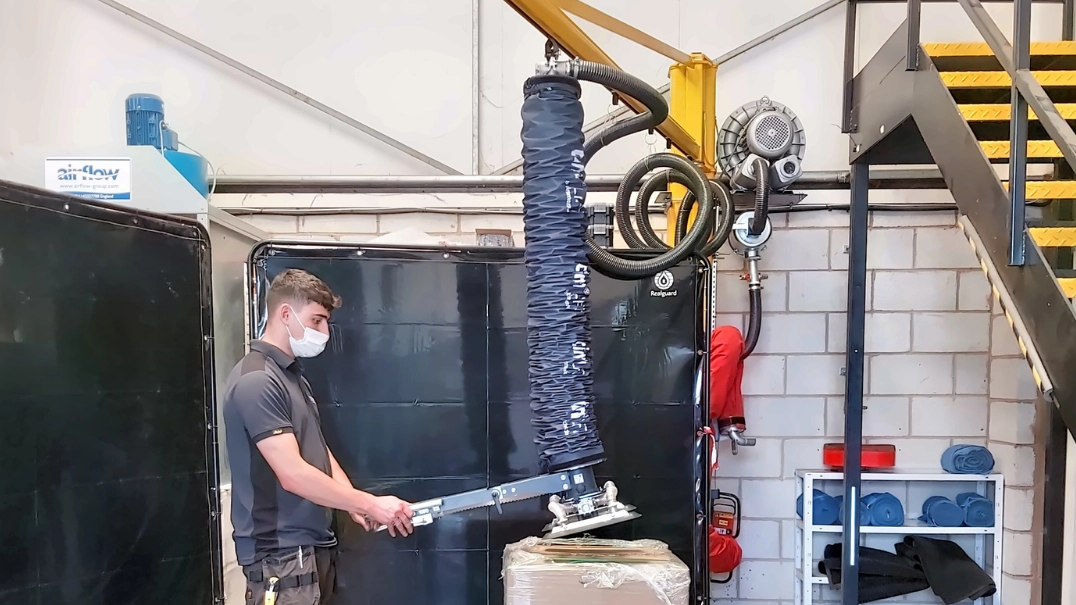

Vacuum lifting requires a steady, pulse-free air supply to maintain load security. Ring blowers excel at providing the continuous airflow necessary for:
Leakage Compensation: Maintaining a firm grip on porous materials (like wood) or slightly irregular surfaces where air might seep in.
Operational Safety: Eliminating the pressure fluctuations that can occur with piston-based systems, thereby reducing the risk of accidental load drops.
The absence of wearing parts—aside from the bearings—means these units can run for tens of thousands of hours with minimal intervention. In a 24/7 production environment, this results in significantly lower downtime compared to rotary vane pumps, which require regular oil changes and vane replacements.
For applications requiring high airflow rather than extreme "deep" vacuum, ring blowers are remarkably efficient. Replacing compressed-air-driven venturi systems with a dedicated ring blower can often reduce energy consumption by over 40%.

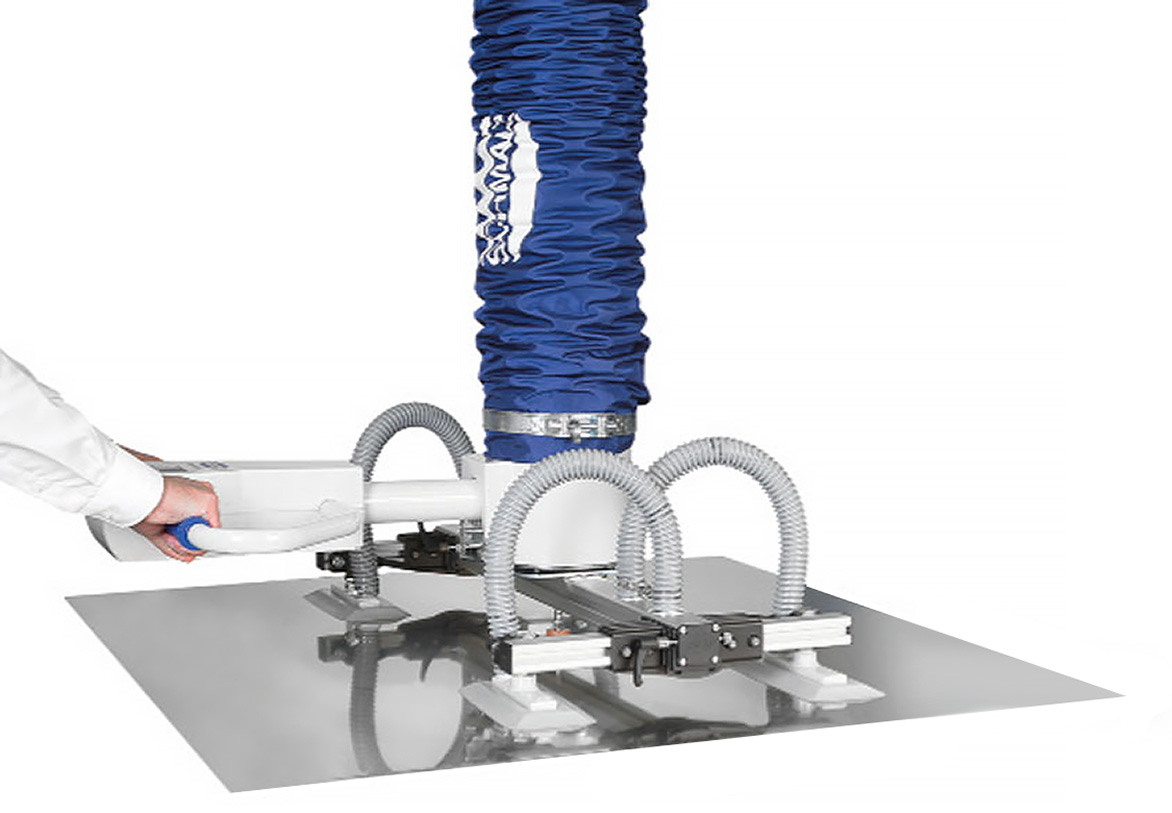

Handling non-porous, heavy sheets requires a massive initial "grab." Ring blowers provide the high volume needed to evacuate large suction pads rapidly, ensuring a secure and instantaneous grip even on oversized panels.
In woodworking, dust and material porosity are constant challenges. Ring blowers are the preferred choice because they can handle minor dust ingestion (when equipped with proper filtration) and provide the high flow rates necessary to secure porous MDF or plywood boards during high-speed routing.
In high-speed "pick-and-place" cycles, response time is everything. The rapid airflow of a ring blower allows for faster attachment and release cycles, directly increasing the throughput of automated palletizing and packing lines.
Single-Stage: The standard choice for most lifting tasks requiring high airflow and moderate vacuum levels.
Double-Stage: Features a dual-impeller design to generate higher vacuum depth (up to 500-700 mbar), making them ideal for heavy-duty lifting or systems with long pipe runs.
Modern ring blowers are compact and versatile in their mounting options. To optimize the work environment, they are easily integrated with inlet silencers and acoustic enclosures, meeting strict noise regulation standards without sacrificing performance.
A ring blower is more than just a component; it is the safety foundation of a vacuum lifting system. By delivering clean, stable, and cost-effective vacuum, it remains the most strategic choice for companies looking to optimize their material handling workflows while maintaining the highest safety standards.
