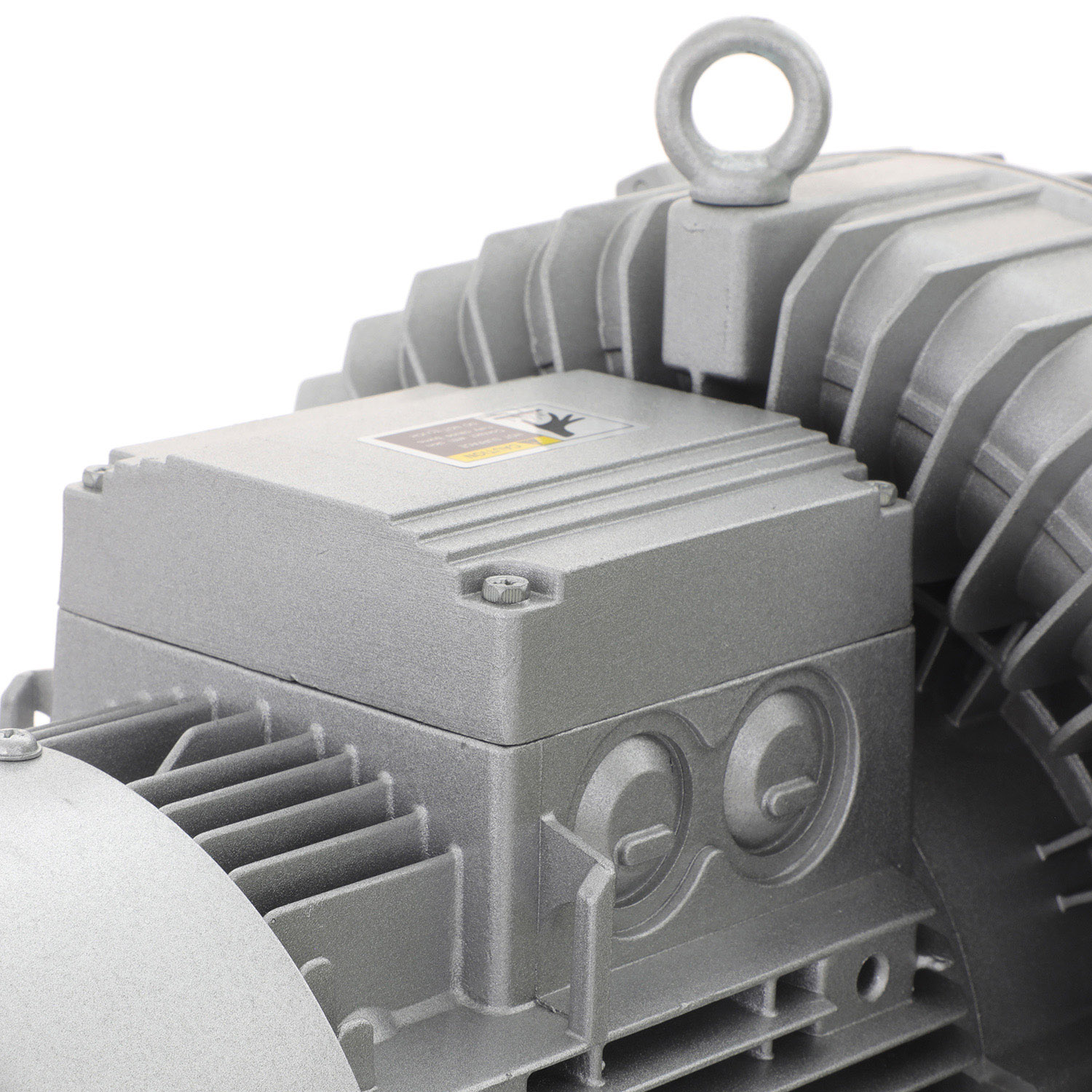

In industrial applications, blower wiring methods are important for determining operational voltage, performance, and efficiency.
The two main wiring configurations for three-phase blower motors are the Delta (Δ) connection and the Star (Y) connection. These are not interchangeable without considering regional voltage standards and operational needs.
In many Asian countries, Delta wiring matches local industrial voltage levels, making it a common choice for side channel blowers in manufacturing and processing plants. Star wiring, however, is more prevalent in Europe, North America, and other areas with higher grid voltages, ensuring safe and efficient operation for blowers in those regions.

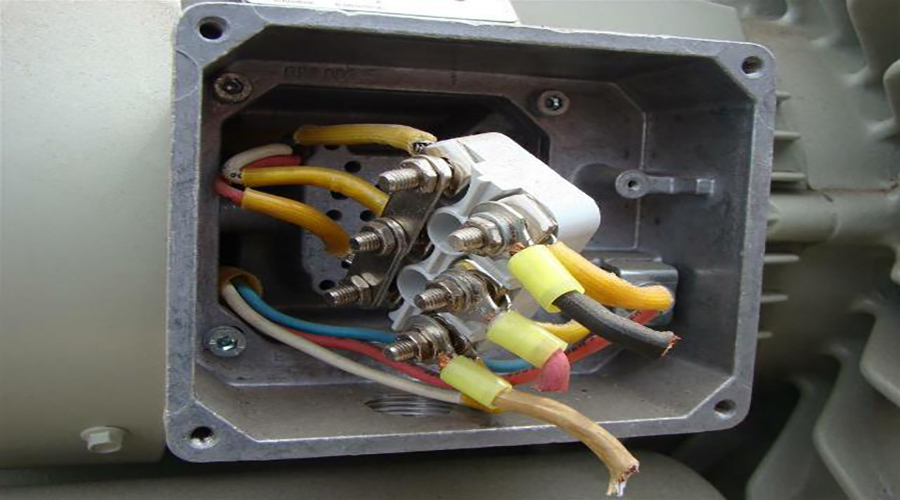

In a Delta connection, the motor windings are connected in a loop, forming a triangle shape. Each point connects to one phase of the power supply, meaning line voltage equals phase voltage. This configuration allows side channel blowers to achieve strong starting torque and higher power output from the beginning.
Line Voltage = Phase Voltage
Ideal for low-voltage, high-current networks, such as 200–240V three-phase systems.
Suitable for applications where side channel blowers must deliver high air volume and pressure immediately upon startup.
High Starting Torque: Beneficial for blowers used in vacuum lifting, pneumatic conveying, and wastewater aeration.
Full Power Output: Maximizes performance for heavy-duty side channel blower operations.
Compatibility in Asia: Matches local industrial supply voltages.
Increased current can cause more heat in motor windings.
Higher electrical load if not correctly matched to operational requirements.
May require more frequent inspections in continuous high-load applications.
In a Star connection, one end of each winding connects to a neutral point, while the other ends connect to the power supply phases. This reduces the phase voltage compared to the line voltage by a factor of √3, lowering stress on the motor.
For side channel blowers, Star wiring helps provide smoother starts and prolongs equipment life, making it ideal for continuous-duty setups in high-voltage networks.
Phase Voltage = Line Voltage ÷ √3
Common for 380–415V three-phase systems.
Lower electrical stress benefits side channel blower longevity.
Reduced Starting Current: Prevents sudden electrical surges during blower startup.
Prolonged Motor Life: Reduces thermal and mechanical stress on side channel blowers.
Energy Efficiency: Suitable for operations prioritizing low running costs.
Lower starting torque compared to Delta wiring.
May require a Star-Delta starter for applications needing both smooth starts and full torque.
Delta Wiring: Best for 200–240V low-voltage industrial power systems.
Star Wiring: Designed for 380–415V high-voltage supply networks.
For side channel blowers, this choice directly impacts performance. Delta wiring suits applications like material handling or fish pond aeration, where immediate high airflow is required. Star wiring benefits continuous processes like fermentation aeration, where smooth operation and longevity are key.
Delta: Maximum torque and airflow from startup.
Star: Gradual acceleration with reduced strain on blower components.
Delta: Higher risk of overheating if not correctly sized for the load.
Star: Lower starting current, reducing overload risks.
Industrial networks with 200–240V three-phase supply often use Delta wiring for side channel blowers in packaging, printing, and pneumatic conveying.
With 380–415V three-phase power, Star wiring dominates, ensuring compatibility and safe operation for blowers in manufacturing and environmental systems.
Voltage varies (208V, 230V, 460V three-phase). Low-voltage Delta and high-voltage Star configurations are used depending on side channel blower specifications.
Key considerations:
Available voltage in the region.
Required startup torque for the application.
Duty cycle and load variation.
Efficiency and maintenance priorities.
For example:
Material handling in a 220V network → Delta wiring.
Wastewater aeration in a 400V network → Star wiring.
The wiring method for a blower motor—especially for side channel blowers—affects not just voltage compatibility but also operational efficiency, motor health, and system safety. Delta wiring delivers powerful starts for heavy-duty tasks in low-voltage grids, while Star wiring ensures smoother starts and extended motor life in high-voltage networks. In some cases, the Star-Delta starting method offers a balanced solution.
By aligning wiring methods with supply voltage, load needs, and application type, industries can maximize the reliability and performance of side channel blowers, ensuring long-term operational stability.
