Influence of Altitude on the parameters of Blowers

Understanding How High Altitude Affects Blower Flow Rate and Pressure Output

Operating a blower in high-altitude regions introduces a unique set of challenges that directly influence airflow, positive pressure, and negative pressure performance. As elevation increases, the surrounding air becomes thinner, resulting in lower air density. This reduction affects how efficiently a blower can generate and move air, causing noticeable deviations from its sea-level rated specifications.

This article provides a technical yet accessible explanation of how high-altitude environments influence blower behavior—especially regarding flow rate, vacuum pressure, and compression pressure. It also outlines practical considerations for equipment selection, performance correction, and system optimization for industrial applications in mountainous areas.

Why Air Density Drops at High Altitude and How It Impacts Blowers

Air Density as the Core Variable

Air density is the key physical property that changes with elevation. At high altitudes—such as plateaus, mining zones, or mountainous industrial sites—the atmosphere contains significantly fewer air molecules per unit volume. For blowers, which rely on moving mass flow instead of merely volumetric flow, this leads to:

• Less mass handled per rotation

• Reduced capability to compress air

• Increased sensitivity to pressure fluctuations

Even though the volumetric displacement of a blower remains constant, the mass flow rate drops, influencing overall system performance.

Effects on Flow Rate at High Altitude

Actual Flow vs. Rated Flow

At sea level, blower manufacturers calibrate performance based on standard atmospheric conditions. In high-altitude environments, however, air density decreases by approximately 1% for every 100 meters of elevation gain above sea level. As density drops, the blower’s ability to move the same mass of air declines, even if the volumetric flow appears unchanged.

Perceived and Actual Reductions

• Volumetric airflow (m³/h): stays roughly the same

• Effective airflow (kg/h or mass flow): decreases noticeably

This leads to lower real output and reduced efficiency in applications requiring constant air mass—such as aeration, pneumatic conveying, combustion air supply, drying systems, or vacuum systems.

Practical Example

If a blower is installed at 3,000 meters above sea level, the air density is roughly 70% of sea-level density. The blower thus delivers only about 70% of its rated mass flow, even though volumetric readings may seem correct.

Impact on Positive Pressure (Compression) Performance

Lower Density Means Lower Pressure Build-Up

Blowers generate pressure by accelerating air and converting velocity into pressure energy. When the incoming air is thinner, it contains less kinetic energy for the same impeller speed. Consequently:

• Positive pressure output decreases

• Maximum achievable pressure is significantly reduced

• System resistance may exceed blower capability

High-altitude blowers often cannot reach their rated kPa or mbar pressure values unless specifically designed or derated correctly.

Pressure Drop Estimates

Pressure reduction generally aligns with density loss. For example:

• At 2,000 meters: ~80% of rated pressure

• At 4,000 meters: ~60–65% of rated pressure

Why This Matters in Industrial Systems

Reduced pressure can cause:

• Insufficient aeration oxygen levels

• Weak conveying forces in pneumatic systems

• Poor performance in pressure-sensitive chemical processes

• Failure to maintain required backpressure for burner systems

Thus, pressure derating is essential when selecting blowers for elevation-specific installations.

Impact on Negative Pressure (Vacuum) Performance

Vacuum Capability Also Declines

Vacuum generation depends heavily on pressure differential between the system and ambient air. At high altitude, ambient pressure is already lower, meaning:

• The maximum possible differential is reduced

• Vacuum levels measured in kPa or mbar appear lower

• Suction force decreases proportionally

Vacuum Reduction Pattern

Just like positive pressure, vacuum strength decreases with altitude. A blower rated at −30 kPa at sea level may only achieve −20 kPa at certain elevations.

Operational Implications

Lower vacuum pressure can lead to:

• Weaker suction in material handling

• Slower dust or vapor extraction

• Inefficient vacuum packaging or forming processes

• Reduced effectiveness in industrial vacuum cleaning systems

How High Altitude Causes Parameter “Fluctuation”

Many users observe that blower performance seems “unstable” at high elevation. This is primarily due to:

• Density variation caused by temperature swings

• Larger sensitivity to system resistance

• Greater impact of moisture and humidity

• Mechanical load changes due to reduced air mass

Because the blower is working in a lower mass-flow environment, even slight atmospheric variations can cause noticeable performance shifts.

Motor Load and Energy Consumption at High Altitude

Motor Load Reduces

With less dense air, blowers encounter lower aerodynamic resistance, meaning motors often run at reduced load. This can appear beneficial but may also cause:

• Unstable torque curves

• Difficulty reaching optimal operating points

• Increased risk of surge in high-pressure applications

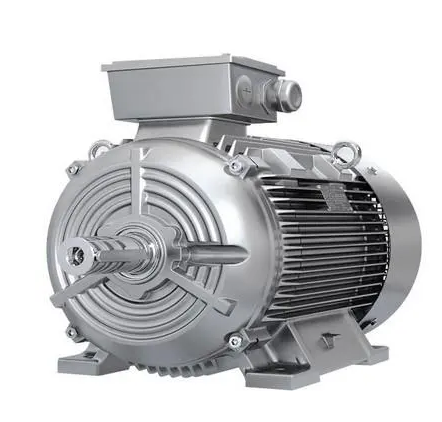

High-Altitude Motors Require Derating

IEC and NEMA standards recommend motor derating above 1,000 meters elevation due to:

• Lower cooling efficiency

• Higher thermal stress

• Reduced insulation performance

For blowers operating continuously, proper derating ensures safety and longevity.

Conclusion

High-altitude operation demands precise understanding of how air density, flow rate, positive pressure, and negative pressure are affected. Blower performance declines linearly with elevation, especially when considering mass flow and achievable pressure differential. Proper correction, derating, and system design adjustments are essential to maintain reliability, efficiency, and operational safety.
