The IP level, or Ingress Protection rating, is a globally recognized standard defined by the International Electrotechnical Commission (IEC 60529) that classifies the degree of protection provided by electrical enclosures against solids and liquids. This system is particularly important for industrial equipment like side channel blowers, which often operate in environments with dust, moisture, and varying temperatures.

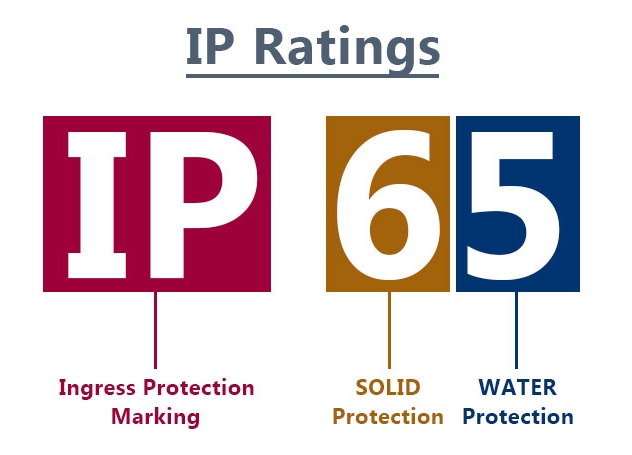

The IP rating is composed of two digits:
The first digit (0–6): Protection against solid objects or materials, such as dust.
The second digit (0–9): Protection against liquids, such as water and oil.

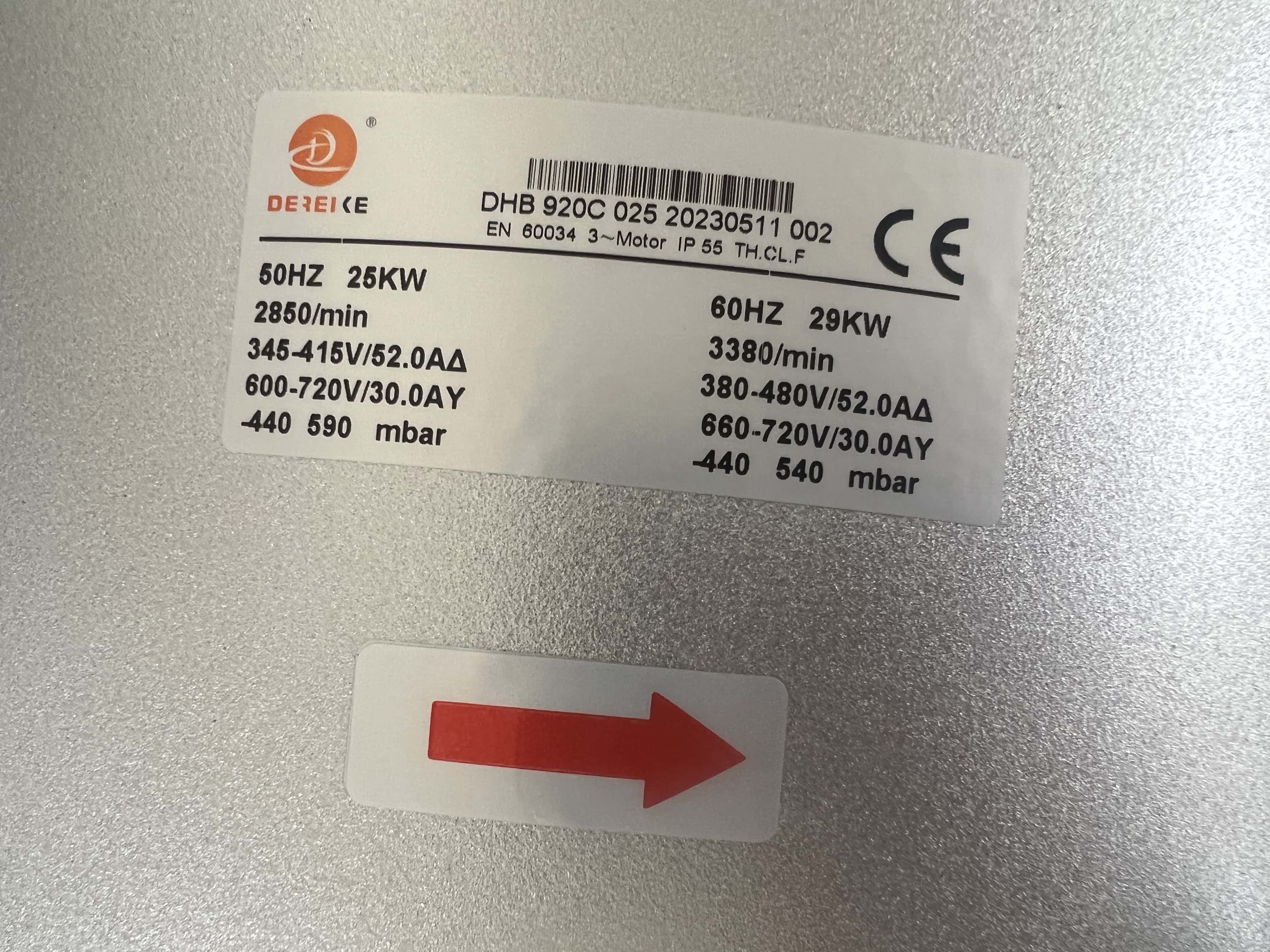

For example, IP55 indicates:
The “5” for solids means the device is dust-protected, not completely dust-tight, but dust that does enter won’t interfere with normal operation.
The “5” for liquids means it is protected against water jets projected from any direction.
A side channel blower with an IP55 rating is designed for environments where dust and water jets are present, making it suitable for a broad range of industrial and commercial uses. These blowers are engineered to maintain consistent air pressure and flow performance even in demanding operating conditions.
Choosing a side channel blower with IP55 protection ensures:
High operational reliability in dusty or semi-wet environments
Reduced risk of short circuits and electrical failures
Compliance with industrial safety standards
Longevity and reduced maintenance due to better enclosure design
Industries that benefit from IP55-rated side channel blowers include:
Wastewater treatment plants
Food processing
Pneumatic conveying systems
Chemical and pharmaceutical factories
Printing and packaging operations
With its dust protection and water jet resistance, the IP55 rating ensures that side channel blowers continue operating efficiently in:
Outdoor installations
Dust-prone workshops
Factories with high humidity or exposure to fluids
IP55 blowers require less frequent cleaning and lower maintenance efforts, thanks to their sealed design, which prevents the accumulation of dust and moisture inside the motor or electronics.
An IP55 blower often integrates efficient insulation, sealed bearings, and optimized cooling systems that help the machine maintain:
Lower power consumption
Improved motor life
Reliable pressure output
To meet IP55 standards, side channel blower manufacturers incorporate:
Sealed motor housings
Gaskets and O-rings around joints and openings
Water-resistant cable entries
Special coatings or materials that resist corrosion and moisture
Manufacturers test blowers for IP55 certification by:
Spraying water jets at specific pressures and angles
Exposing the blower to dust chambers for prolonged durations
Running performance tests under simulated harsh conditions
IP55 blowers are widely used in aeration tanks, where moisture and gaseous byproducts are prevalent. Their water-resistant design ensures uninterrupted operation and reduces the chance of motor burnout.
Vacuum lifters in dusty warehouses rely on IP55 side channel blowers for consistent suction power without performance drops due to dust ingress.
In environments with steam and powder particles, such as bakeries or bottling plants, IP55-rated units handle air conveyance or drying tasks without risk of contamination or motor failure.
For transferring powder or granular materials, side channel blowers must resist internal contamination. The IP55 rating ensures these systems can run without requiring constant cleaning or inspection.
Choosing an IP55-rated side channel blower is a strategic decision for engineers and plant managers who value:
Operational stability
Resistance to environmental hazards
Longevity and reduced downtime
Compliance with industrial standards
Whether you're working in a dusty warehouse, a humid processing plant, or a semi-outdoor facility, IP55 blowers offer the right balance of protection, performance, and cost-efficiency. Always ensure the product you're selecting matches both your application requirements and environmental challenges.
