Navigating Safety Standards for Side Channel Blowers

Side channel blowers are widely used for wastewater aeration, aquaculture, pneumatic conveying, vacuum lifting, air knives, CNC machines, and industrial drying.

However, selecting a blower is not only about airflow and pressure. Safety standards, electrical protection, operating conditions, and installation environments must also be considered.

Understanding these requirements helps engineers and equipment buyers select a blower that is appropriate for both the application and its operating environment.

Why Safety Standards Matter

A side channel blower contains high-speed rotating components and an electric motor, creating several potential hazards, including:

• Electrical faults

• Mechanical damage

• Excessive temperature

• Excessive pressure or vacuum

• Noise and vibration

• Dust or contaminated air

• Flammable gases or combustible dust

A blower suitable for wastewater aeration, for example, may not be appropriate for an environment containing flammable gases.

Therefore, safety should be considered during blower selection—not after installation.

1. Start With a Risk Assessment

A machinery risk assessment helps identify potential hazards before equipment is selected and installed.

ISO 12100 provides general principles for machinery risk assessment and risk reduction.

For a side channel blower system, consider:

• Electrical hazards

• Rotating components

• Pressure and vacuum limits

• Operating temperature

• Noise and vibration

• Air contamination

• Installation and maintenance conditions

• Hazardous-area requirements

The assessment should consider both normal operation and reasonably foreseeable abnormal conditions.

Application Makes a Difference

Different applications have different safety priorities.

Wastewater aeration: continuous operation, moisture, corrosion, and thermal management.

CNC vacuum systems: filtration, dust control, vacuum performance, and blockage protection.

Chemical or hazardous environments: explosion protection and ignition-source control.

2. Understand CE Requirements

For equipment supplied to the European market, applicable EU legislation and conformity requirements must be considered.

The EU Machinery Regulation (EU) 2023/1230 will apply from January 20, 2027, replacing the Machinery Directive framework for products within its scope.

Depending on the equipment and application, technical documentation may include:

• Declaration of Conformity

• Operating instructions

• Risk assessment

• Safety information

• Product identification

• Applicable standards

Importantly, CE marking does not automatically mean that a blower is suitable for every industrial environment.

For example, CE compliance should not be interpreted as automatic ATEX suitability.

3. When Is ATEX Important?

ATEX becomes particularly important when equipment is intended for use in potentially explosive atmospheres.

These environments can involve:

• Flammable gases

• Vapors

• Mists

• Combustible dust

Potential applications include chemical processing, petrochemical facilities, powder processing, and certain dust-handling systems.

Why Explosion Protection Matters

A blower can potentially become an ignition source through:

• Electrical sparks

• Hot surfaces

• Static electricity

• Mechanical friction

• Motor faults

• Impeller contact

For equipment intended for hazardous areas, the applicable ATEX requirements and equipment classification must therefore be verified.

4. The Role of IEC 60079

The IEC 60079 series provides important international standards for equipment used in explosive atmospheres.

IEC 60079-0 covers general requirements related to Ex equipment, including:

• Construction

• Testing

• Temperature

• Enclosures

• Electrostatic considerations

• Marking

• Documentation

When selecting an Ex blower or motor, the complete certification and marking should be checked against the actual installation conditions.

Factors such as zone, gas or dust classification, temperature class, equipment protection level, and ambient temperature may all be relevant.

5. Check Motor and Operating Limits

The motor is one of the most important safety-related components of a side channel blower.

Before installation, check:

• Rated voltage and frequency

• Rated current

• Motor protection

• IP rating

• Ambient temperature

• Duty cycle

• Rotation direction

• Overload protection

The blower should also operate within the manufacturer's specified pressure, vacuum, airflow, and temperature limits.

Why Pressure Protection Matters

Blocked piping or excessive system resistance can create abnormal operating conditions.

Depending on the system, protection may include:

• Pressure relief valves

• Vacuum relief valves

• Filters

• Temperature monitoring

• Electrical overload protection

These components should be selected according to the complete system design.

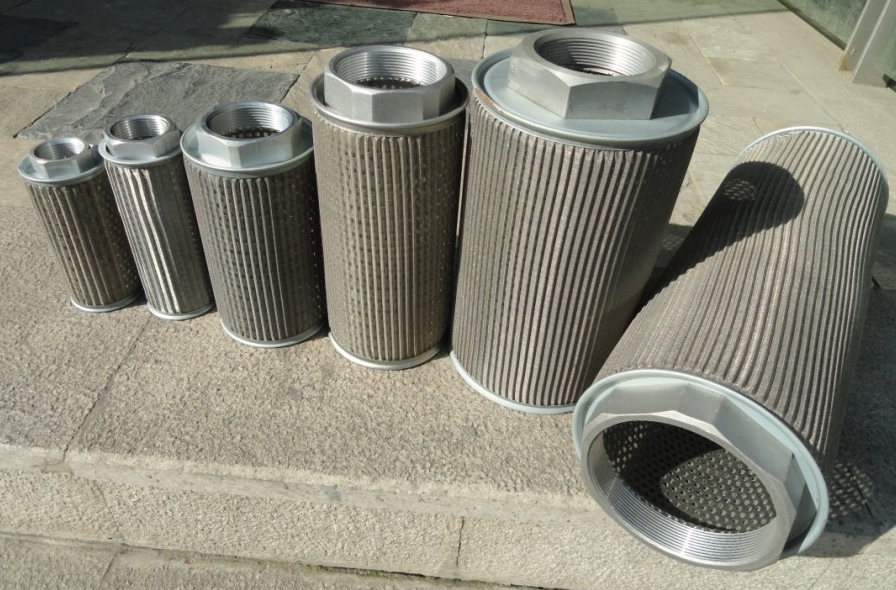

6. Consider Filtration and Installation Conditions

Industrial blowers may be exposed to dust, moisture, chemicals, or other contaminants.

Proper filtration can help prevent:

• Reduced airflow

• Impeller contamination

• Increased system resistance

• Motor overheating

• Excessive maintenance

Installation also matters. The blower should have adequate ventilation and should not be enclosed in a small space without considering heat dissipation.

Excessive ambient temperature can affect motor performance and service life.

7. Common Safety Mistakes

Several mistakes can be avoided with a proper selection process.

Selecting Only by Airflow

The required airflow does not tell you whether the blower can achieve the required pressure or vacuum.

Assuming CE Means ATEX

CE marking and ATEX suitability are different requirements.

Ignoring System Resistance

Pipe length, bends, filters, valves, diffusers, and nozzles all affect the actual operating point.

Using Standard Equipment in Hazardous Areas

A standard industrial blower should not be used in a classified hazardous area unless its suitability has been properly established.

Neglecting Maintenance

Even certified equipment requires correct installation, inspection, and maintenance.

How to Select a Safer Side Channel Blower

A practical selection process can follow these steps:

1. Define the application.

2. Determine required airflow.

3. Calculate pressure or vacuum requirements.

4. Identify the air or gas being handled.

5. Evaluate the installation environment.

6. Check whether hazardous-area requirements apply.

7. Verify motor and electrical specifications.

8. Review applicable standards and certifications.

9. Confirm the operating point with the manufacturer.

Final Thoughts

Safety standards for side channel blowers involve more than a single certification. Proper selection requires consideration of machinery safety, electrical protection, pressure and vacuum limits, temperature, environmental conditions, and hazardous-area requirements.

For conventional industrial applications, correct sizing, filtration, ventilation, motor protection, and installation are fundamental.

For potentially explosive environments, ATEX and IEC 60079 requirements may become critical.

The key principle is simple:

Choose a side channel blower based on the complete application—not just airflow and pressure.
