Inside the blower, a rapidly spinning impeller draws in air and forces it through a narrow, curved channel. As the air moves along this path, its speed and pressure change, producing either positive or negative pressure depending on the system design.
When configured to draw air inward and discharge it externally, the blower creates negative pressure, which functions like a vacuum. This capability supports a wide range of industrial applications where reliable suction is required.
Negative pressure refers to a condition where the air pressure inside a space is lower than the surrounding atmosphere. This principle is key in processes that require controlled suction or vacuum conditions.
By connecting the blower’s inlet to the target area and allowing the outlet to release air, a side channel blower becomes a powerful vacuum source. It steadily pulls in air from the system, making it ideal for tasks where material handling, air sampling, or cleaning requires continuous suction.
Vacuum lifting devices
Industrial packaging machines
Pneumatic conveying systems
Environmental air testing
Medical suction tools
Centralized vacuum cleaning setups
In all of these settings, the consistency and stability of negative pressure play a direct role in operational efficiency.

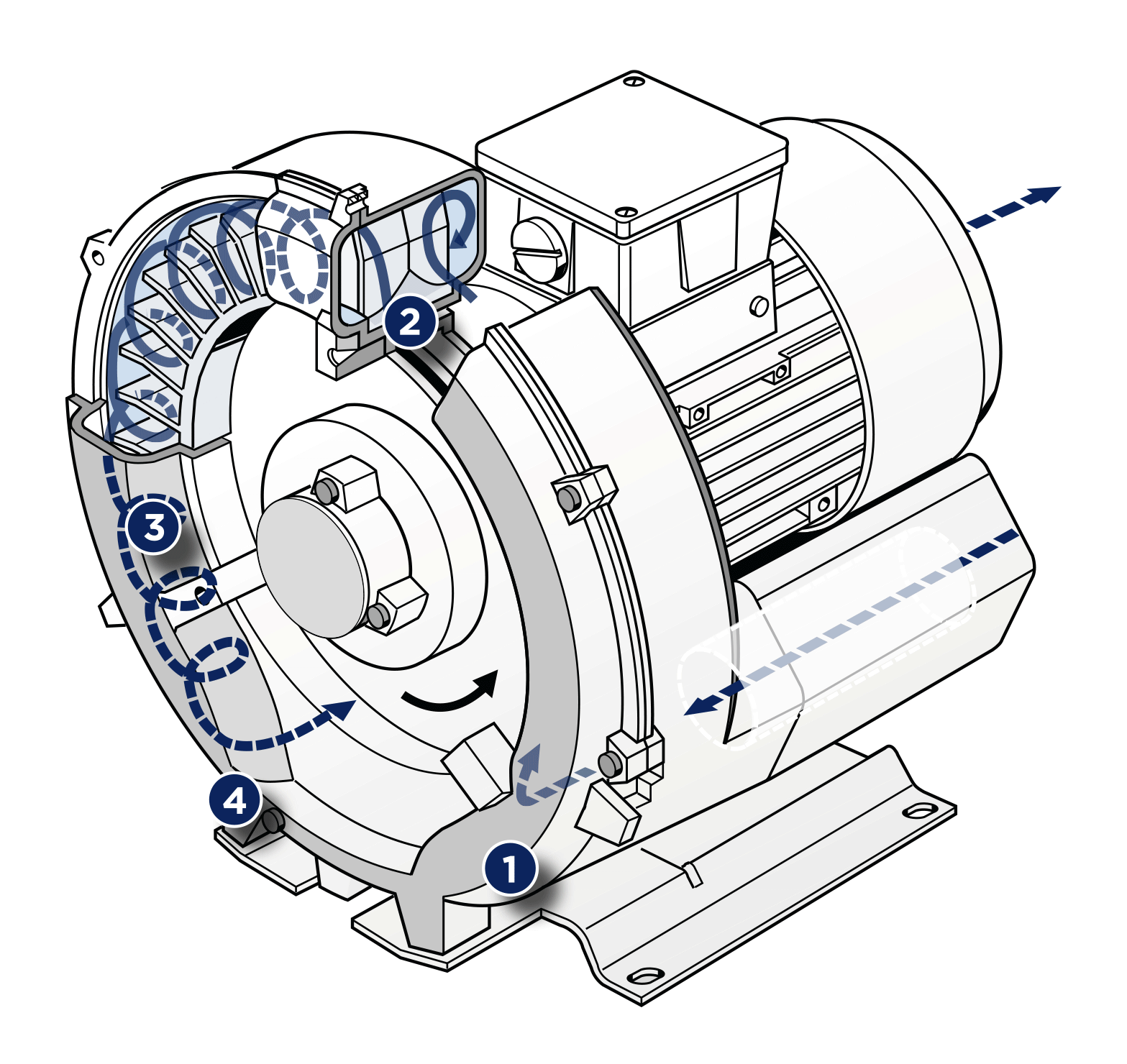

Once the blower is powered on, its impeller spins at high speed, drawing air through the inlet. As the air enters the curved side channel, it’s repeatedly accelerated and redirected. This design allows the blower to gradually build pressure through multiple vortex motions.
The outgoing airflow is continuously pushed out through the exhaust port. Because more air is pulled in than exits instantly, a vacuum forms at the inlet, creating a reliable zone of negative pressure.
Selecting the correct blower size is critical. An undersized unit won’t deliver enough vacuum, while an oversized one may lead to energy waste or overheating. Carefully consider the system’s required airflow and pressure levels when choosing a model.
To maintain effective vacuum performance, the entire system—from the inlet line to the blower—must be well-sealed. Any air leakage will compromise suction power and reduce overall efficiency.
Air drawn into the blower should be filtered to remove dust and particles. This protects internal components and ensures consistent performance over time.
Excessive backpressure can reduce system efficiency or damage the motor. Using pressure relief valves or regulators helps maintain safe and stable operation under varying loads.
Vacuum packers rely on negative pressure to remove air from product packaging, preserving freshness and extending shelf life. Side channel blowers provide the necessary suction to automate this process efficiently.
In clinical environments, side channel blowers are used in suction systems for fluid removal, hygiene control, and aerosol collection. Their oil-free operation ensures a sterile working environment.
Cleanrooms and automated production lines use these blowers to maintain dust-free conditions and to handle delicate components through vacuum grip systems.
Air quality testing devices use small side channel blowers to draw in air for analysis. Their quiet operation and reliability make them well-suited for mobile or outdoor use.
In printing machines, negative pressure is used to hold paper sheets in place or transport them between stages. The consistent airflow from side channel blowers supports high-speed operations without misfeeds.
When planning a negative pressure system using side channel blowers, these specs are essential:
Maximum vacuum pressure (mbar)
Flow capacity (m³/h or CFM)
Motor output (kW)
Operating noise level (dB)
Ingress protection (IP rating)
Temperature tolerance range
These factors help ensure the blower performs as expected under real-world conditions.
Side channel blowers are an effective, dependable solution for creating negative pressure in a variety of industrial and commercial applications. Their clean operation, reliability, and energy efficiency make them a preferred choice for vacuum-based systems. Whether you're designing a new process or upgrading an existing setup, understanding how these blowers work—and how to size and configure them properly—will help you get the most out of your equipment.
