Reason for Insufficient Ring Blower Pressure

Why Is Your Side Channel Blower Not Producing Enough Pressure?

Side channel blowers are widely used in wastewater treatment, aquaculture, vacuum systems, pneumatic conveying, and other industrial applications. However, insufficient pressure can reduce system efficiency and affect overall performance.

Here are six common causes of low blower pressure and practical solutions to resolve them.

1. Incorrect Blower Size

Selecting a blower that is too small for the application can result in insufficient pressure or airflow.

Solution:

• Check the required airflow and operating pressure.

• Compare your requirements with the blower's performance curve.

• Select a suitable model based on actual operating conditions.

2. Air Leakage in Pipes or Connections

Air leakage from loose fittings, damaged seals, or cracked pipelines can reduce pressure at the point of use.

Solution:

• Inspect all pipes, hoses, and connections.

• Tighten loose fittings.

• Replace damaged seals or leaking components.

3. Incorrect Motor Rotation

For three-phase side channel blowers, incorrect electrical connections may cause the motor to rotate in the wrong direction, reducing blower performance.

Solution:

• Check the rotation direction indicated on the blower.

• Have a qualified electrician verify the phase connections.

• Correct the motor rotation if necessary.

4. Incorrect Voltage or Frequency

An improper power supply can affect motor speed, blower performance, and operating stability.

Solution:

• Verify the motor's rated voltage and frequency.

• Ensure the electrical supply matches the nameplate specifications.

• Check the settings of the variable frequency drive (VFD), if installed.

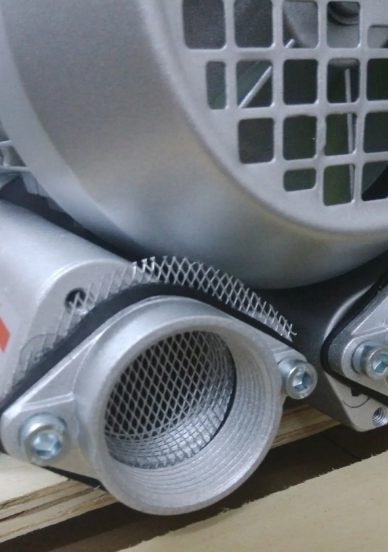

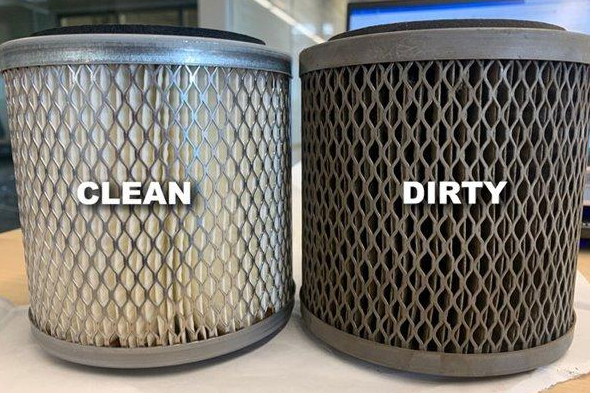

5. Clogged Air Inlet Filter

Dust and debris can accumulate in the inlet filter, restricting airflow and reducing useful system performance.

Solution:

• Inspect the inlet filter regularly.

• Clean or replace clogged filter elements.

• Establish a preventive maintenance schedule.

6. Excessive Pipeline Resistance

Long pipelines, undersized pipes, excessive bends, or blocked valves can increase system resistance and reduce delivered airflow.

Solution:

• Optimize pipeline layout and pipe diameter.

• Reduce unnecessary bends and restrictions.

• Check valves, silencers, and diffusers for blockages.

How to Prevent Side Channel Blower Pressure Problems

Regular maintenance and proper equipment selection are essential for reliable blower operation.

To maintain optimal performance:

• Inspect air filters and pipelines regularly.

• Monitor pressure, airflow, and motor temperature.

• Check electrical connections and operating conditions.

• Ensure the blower operates within its rated performance range.
