In many industrial setups, operators focus heavily on selecting the right regenerative blower, but overlook one critical accessory—the pressure gauge. This seemingly simple instrument plays a decisive role in monitoring performance, preventing failures, and extending equipment life.
A properly installed and interpreted pressure gauge is not just a display tool; it acts as an early warning system. Whether your blower is operating in positive pressure (blowing) or negative pressure (vacuum) mode, the gauge provides real-time insight into system conditions that cannot be judged by sound or airflow alone.
The primary function of a pressure gauge in a regenerative blower system is to measure the air pressure within the pipeline. This includes:
Positive pressure (discharge pressure) when the blower is used for blowing
Negative pressure (vacuum level) when the blower is used for suction
By continuously displaying pressure values, the gauge allows operators to understand whether the blower is working within its designed performance range.
Regenerative blowers are versatile machines capable of operating in both modes:
Blowing mode (positive pressure)
The blower pushes air out to the system. The pressure gauge shows how much resistance the airflow encounters.
Suction mode (negative pressure)
The blower pulls air into the system. The gauge reflects the vacuum level being generated.
This dual capability makes the pressure gauge essential for:
Detecting abnormal resistance in pipelines
Identifying blockages or leaks
Ensuring stable process conditions
Without a gauge, these issues often go unnoticed until performance drops or damage occurs.
Correct installation determines whether the gauge provides meaningful data or misleading readings. The placement depends entirely on the blower’s operating mode.

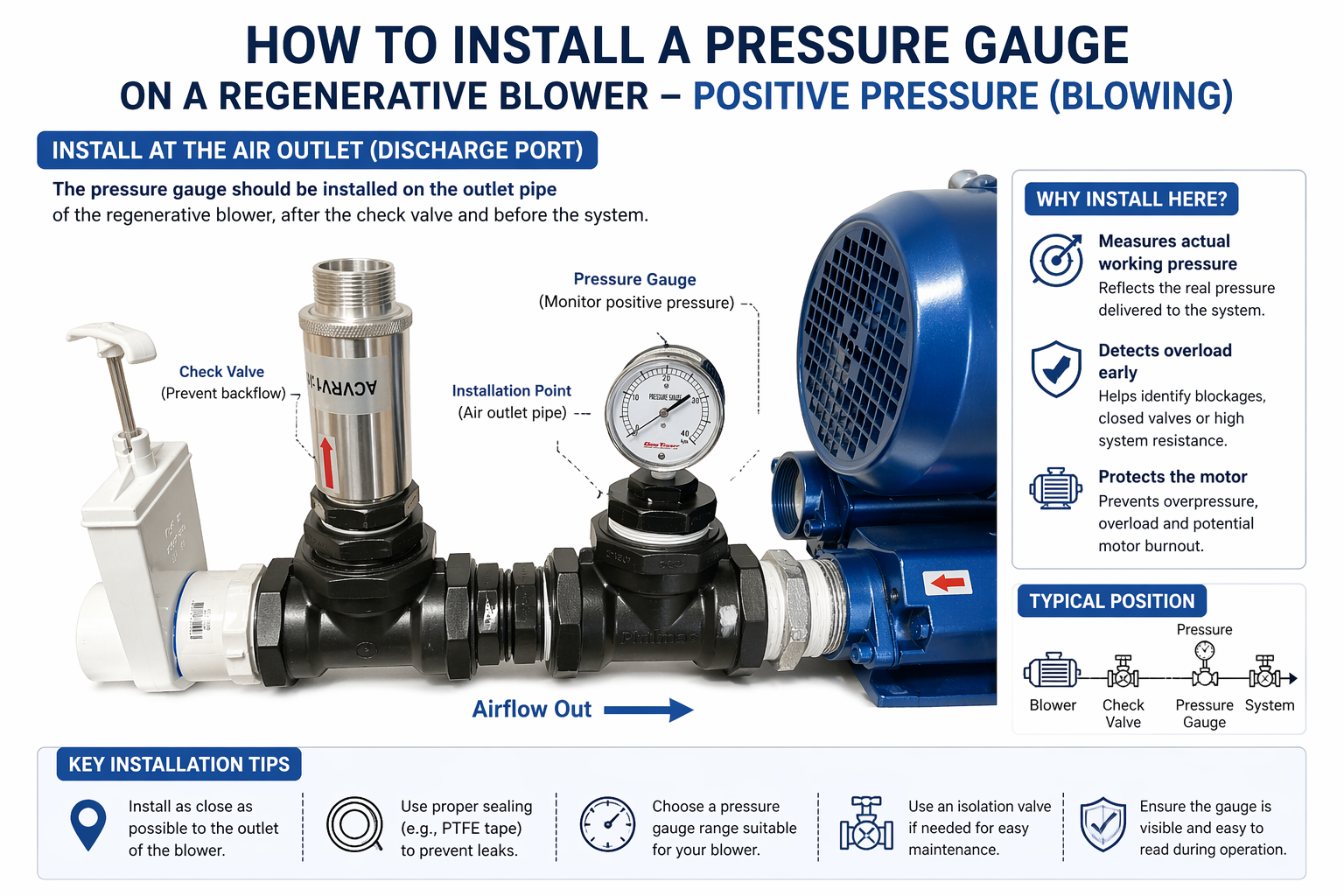

When the regenerative blower is used for blowing:
The pressure gauge should be installed at the air outlet (discharge port)
Why this location matters:
It measures the actual working pressure against system resistance
It reflects downstream conditions such as pipe length, filters, and valves
It helps detect overload conditions early
Typical setup includes:
Pressure gauge mounted on a T-connector at the outlet
Optional isolation valve for maintenance
Vibration-resistant mounting if needed
When the blower is used for suction:
The pressure gauge should be installed at the air inlet (suction port)
Why this placement is critical:
It measures the vacuum level directly
It indicates suction efficiency
It helps identify intake restrictions or air leaks
To ensure accurate readings:
Install the gauge as close as possible to the blower port
Avoid long connecting tubes that may dampen pressure signals
Use appropriate sealing to prevent leakage
Select a gauge range that matches the blower’s operating pressure
Incorrect installation often leads to delayed or inaccurate readings, which defeats the purpose of monitoring.
A pressure gauge is not just for display—it is a diagnostic tool. By observing pressure trends, operators can quickly determine whether the blower is running normally.
Under stable conditions, the pressure gauge should show:
A steady reading within the rated pressure range
Minor fluctuations depending on system load
Consistent values during continuous operation
This indicates that:
The airflow path is unobstructed
The system resistance is stable
The blower is operating efficiently
Abnormal readings usually appear before mechanical failure. Key warning signs include:
Possible causes:
Blocked pipelines
Clogged filters
Closed or partially closed valves
Risks:
Motor overload
Increased temperature
Potential motor burnout
Possible causes:
Air leakage in the system
Worn impeller or internal components
Incorrect installation
Impact:
Reduced efficiency
Inability to meet process requirements
Possible causes:
Intermittent blockages
Loose connections
System instability
This often indicates that the system is not operating under steady conditions and requires inspection.
Experienced operators don’t just look at the current value—they monitor trends over time.
Gradual pressure increase → Possible clogging developing
Gradual pressure decrease → Potential leakage or wear
Sudden spikes → Immediate system obstruction
By acting early, you can avoid downtime and costly repairs.
Skipping a pressure gauge might save a small upfront cost, but it significantly increases operational risk.
One of the most critical roles of a pressure gauge is protecting the motor.
When system pressure exceeds the blower’s design limit:
The motor draws more current
Heat builds up rapidly
Insulation may fail
Without a gauge, operators cannot detect overload conditions in time. This often leads to irreversible motor damage.
Stable operating conditions are essential for long-term reliability. A pressure gauge helps maintain those conditions by:
Keeping pressure within safe limits
Avoiding continuous overload
Reducing mechanical stress
This directly translates into:
Longer service life
Lower maintenance costs
Improved operational efficiency
In industrial environments, safety is non-negotiable. A pressure gauge contributes by:
Providing real-time system feedback
Allowing quick response to abnormal conditions
Preventing unexpected failures
It acts as a simple but effective safeguard for both equipment and personnel.
Modern industrial systems rely on measurable data. A pressure gauge provides:
Clear, real-time operating parameters
A basis for troubleshooting
Reference points for optimization
Even in basic setups, this visibility improves decision-making significantly.

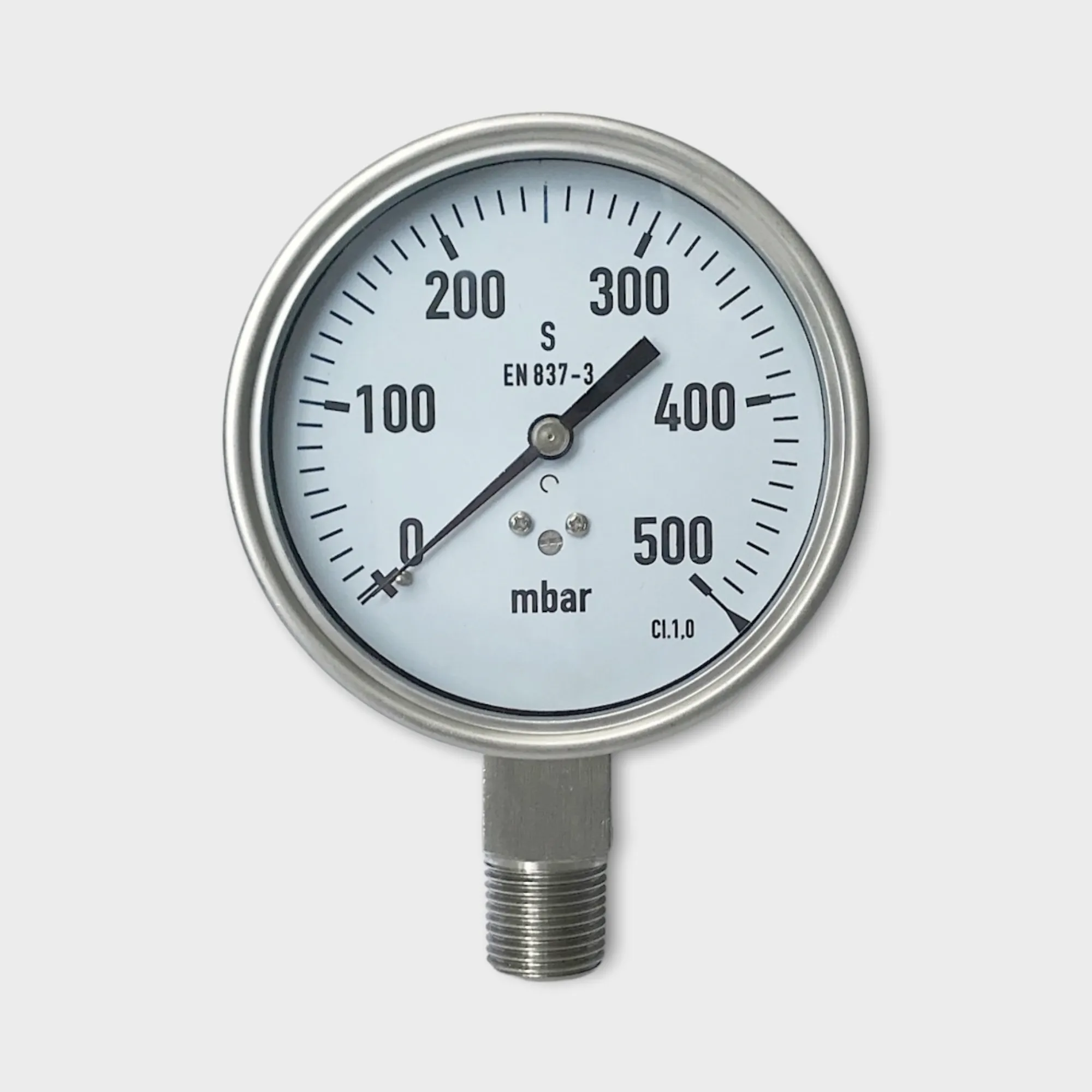

While the concept is simple, selecting the right gauge matters.
Consider the following factors:
Pressure range: Match the blower’s maximum pressure/vacuum
Accuracy class: Higher precision for sensitive applications
Dial size: Larger dials improve readability
Material: Corrosion-resistant for harsh environments
Vibration resistance: Important for continuous operation
A poorly selected gauge can result in inaccurate readings or early failure.
A regenerative blower pressure gauge is far more than an accessory—it is a fundamental component for safe and efficient operation.
It allows operators to:
Monitor both positive and negative pressure in real time
Install correctly based on application (outlet for blowing, inlet for suction)
Diagnose system health through pressure readings
Prevent motor burnout and extend equipment lifespan
In practical terms, the cost of adding a pressure gauge is minimal compared to the potential losses caused by system failure or motor damage.
If your regenerative blower is running without one, you are essentially operating blind. Installing a pressure gauge is not just recommended—it is essential for any reliable and professional system setup.
