Overview of Ring Blower Accessory Installation

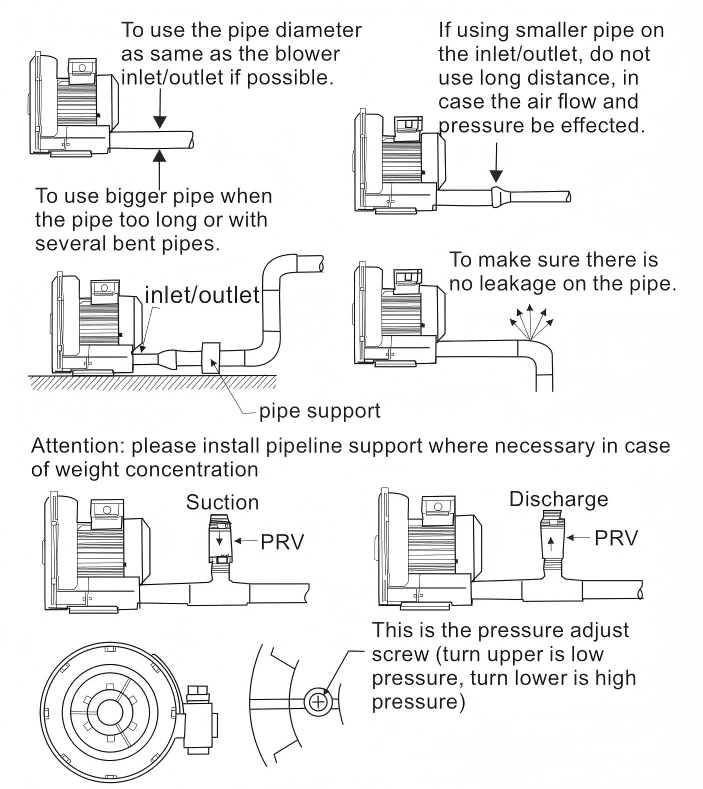

blowerconnect

The correct installation of ring blower accessories is a decisive factor in ensuring long-term operational stability, energy efficiency, and consistent airflow performance. Improper piping layout, incorrect pipe diameter selection, or poorly installed protective accessories can directly lead to pressure loss, overheating, excessive noise, or premature blower failure. This guide delivers a comprehensive, technically precise explanation of the ring blower installation method of accessories, focusing on inlet and outlet piping, pipe diameter matching, pipeline support, leakage prevention, and pressure relief valve configuration.

Designed for industrial users who demand reliability and performance, this article provides structured, practical guidance aligned with real-world installation scenarios.


Principles of Inlet and Outlet Pipe Diameter Selection

Matching Pipe Diameter with Blower Port

For optimal airflow performance, the pipe diameter should match the blower inlet and outlet diameter whenever possible. This ensures smooth air transition between the blower and the pipeline, minimizing turbulence and friction loss.

Key benefits include:

  • Stable airflow velocity

  • Reduced pressure drop

  • Lower motor load

  • Improved overall system efficiency

A direct diameter match allows the blower to operate within its designed performance curve, avoiding unnecessary stress on bearings and impellers.


Using Larger Pipes for Long or Complex Pipelines

When the pipeline is long or contains multiple bends, elbows, or directional changes, using a larger pipe diameter than the blower port is strongly recommended. Extended pipelines naturally increase resistance, and every bend introduces additional pressure loss.

Increasing the pipe diameter helps to:

  • Compensate for friction loss

  • Maintain stable pressure at the application point

  • Prevent airflow bottlenecks

  • Improve energy efficiency

This approach is particularly critical in centralized air supply systems or installations with complex routing.


Avoiding Small Diameter Pipes Over Long Distances

Using a smaller pipe diameter on the inlet or outlet is strongly discouraged, especially over long distances. Reduced pipe diameter causes airflow acceleration, which significantly increases friction and pressure loss.

Potential consequences include:

  • Reduced effective airflow

  • Elevated blower temperature

  • Increased power consumption

  • Higher noise levels

If diameter reduction is unavoidable, it should be kept extremely short and positioned as close to the blower as possible.


Pipeline Layout and Structural Support Requirements

Importance of Proper Pipeline Support

Pipelines connected to a ring blower must be mechanically supported to prevent excessive load on the blower housing. Unsupported pipes create weight concentration, which can distort the blower casing or misalign internal components.

Proper pipeline support ensures:

  • Mechanical stability

  • Reduced vibration transmission

  • Protection of blower bearings and seals

  • Longer equipment lifespan

Supports should be installed at appropriate intervals, especially near elbows, vertical sections, and heavy accessories.


Flexible Connections and Vibration Control

Where necessary, flexible connectors can be used between the blower and rigid piping to absorb vibration and thermal expansion. However, these should not replace structural pipe supports. Their role is vibration isolation, not load bearing.


Leakage Prevention in Ring Blower Piping Systems

Ensuring Airtight Connections

Air leakage in ring blower systems directly reduces performance and wastes energy. Every joint, flange, and threaded connection must be sealed correctly.

Recommended practices include:

  • Using appropriate gaskets or sealing rings

  • Applying thread sealant where required

  • Ensuring uniform tightening torque

  • Inspecting joints during commissioning

Even minor leaks can significantly affect pressure-sensitive applications.


Leakage Risks at Elbows and Fittings

Bends and fittings are common leakage points due to increased stress concentration. Special attention should be paid to these areas during installation and maintenance inspections.


Pressure Relief Valve Installation for System Protection

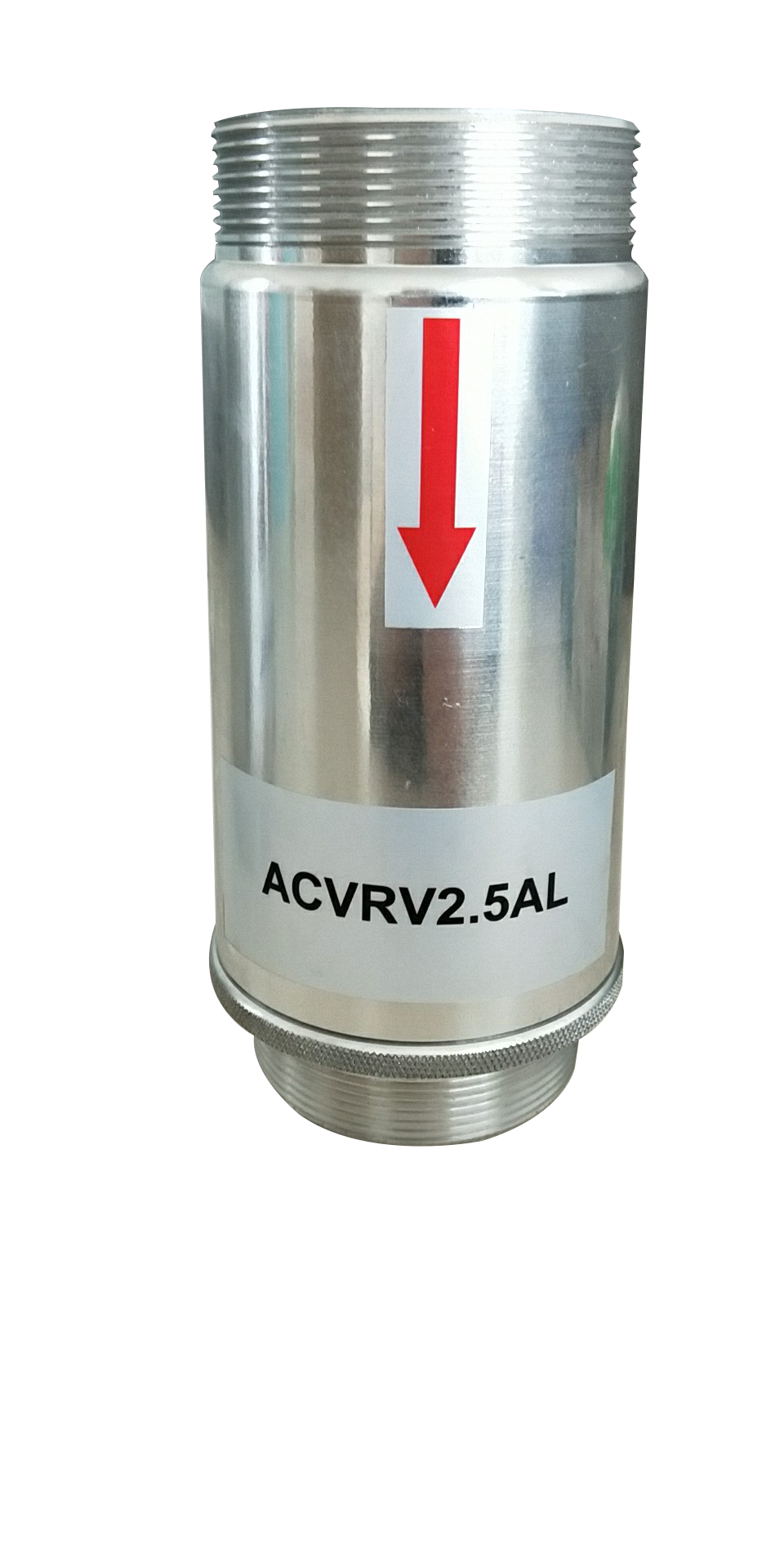

aluminum relief valve

Role of Pressure Relief Valves

A pressure relief valve (PRV) is a critical safety accessory designed to protect the ring blower from overpressure conditions. Blocked pipelines, closed valves, or sudden process changes can cause pressure to rise beyond safe limits.

Installing a PRV helps to:

  • Prevent motor overload

  • Protect impellers and seals

  • Reduce risk of system damage

  • Maintain operational safety


PRV Installation on Suction Side

When installed on the suction side, the PRV protects the blower from excessive vacuum conditions. This configuration is particularly useful in applications involving filtration or vacuum conveying.

The valve opens automatically when the vacuum exceeds the preset threshold, allowing ambient air to enter and stabilize pressure.


PRV Installation on Discharge Side

When installed on the discharge side, the PRV limits maximum system pressure. This is common in aeration, pneumatic conveying, and air knife systems.

Correct installation ensures the valve is positioned vertically and connected securely to prevent vibration-induced loosening.


Pressure Adjustment Mechanism

Most PRVs include an adjustable pressure screw:

  • Turning the screw upward reduces the pressure setting

  • Turning the screw downward increases the pressure setting

Adjustment should be performed gradually during commissioning while monitoring system pressure to avoid sudden load changes.


Airflow Direction and Orientation Considerations

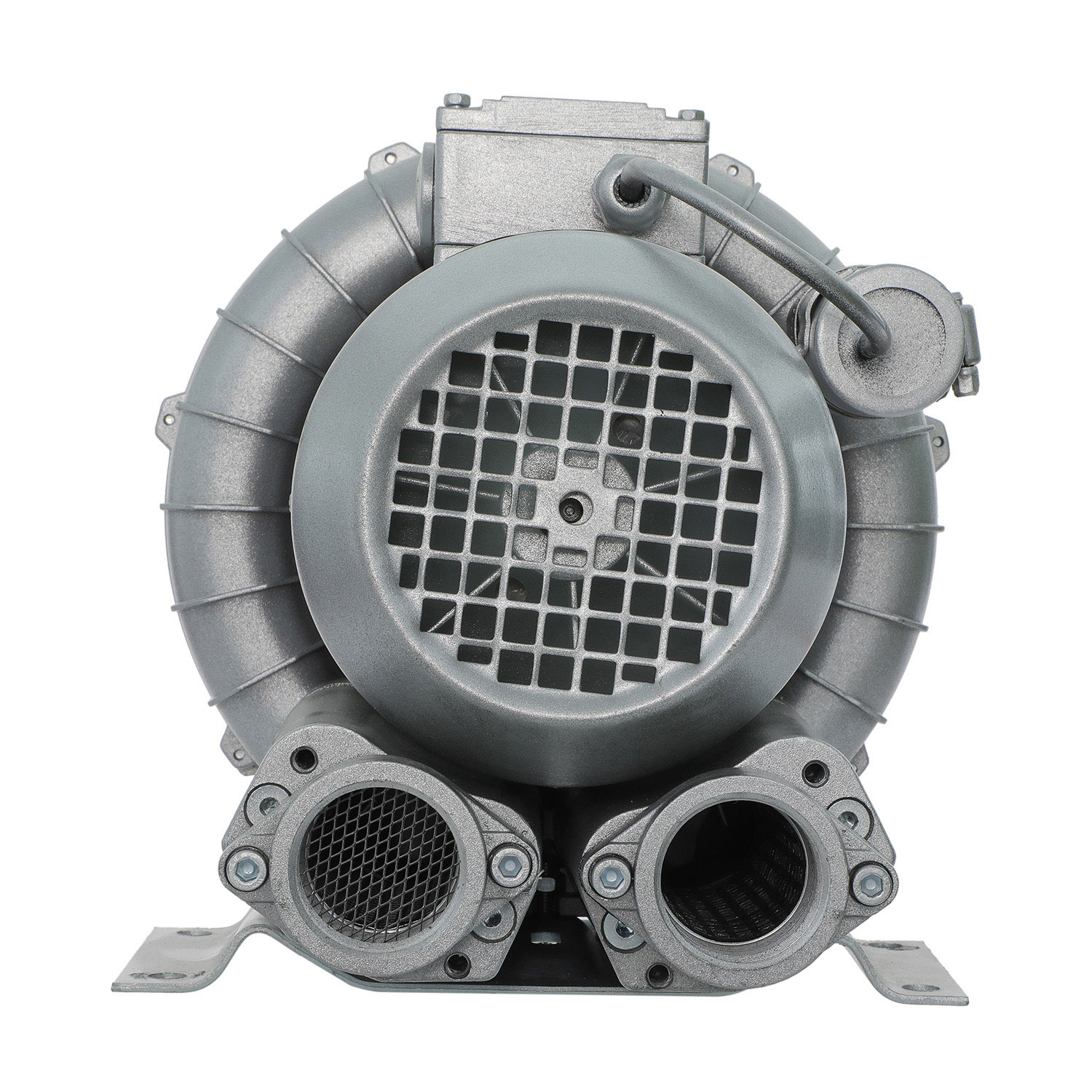

C166A7578

Correct Inlet and Outlet Orientation

Correct identification of the blower inlet and outlet is essential. Reversed connections can lead to immediate performance loss or mechanical damage.

Always verify airflow direction markings on the blower housing before installation.


Vertical and Horizontal Installation Impact

The orientation of the pipeline should support smooth airflow. Sudden vertical rises immediately at the outlet can increase load, while sharp horizontal turns should be avoided close to the blower.

Gradual transitions and smooth-radius bends are preferred.


Noise and Vibration Control Through Proper Accessory Installation

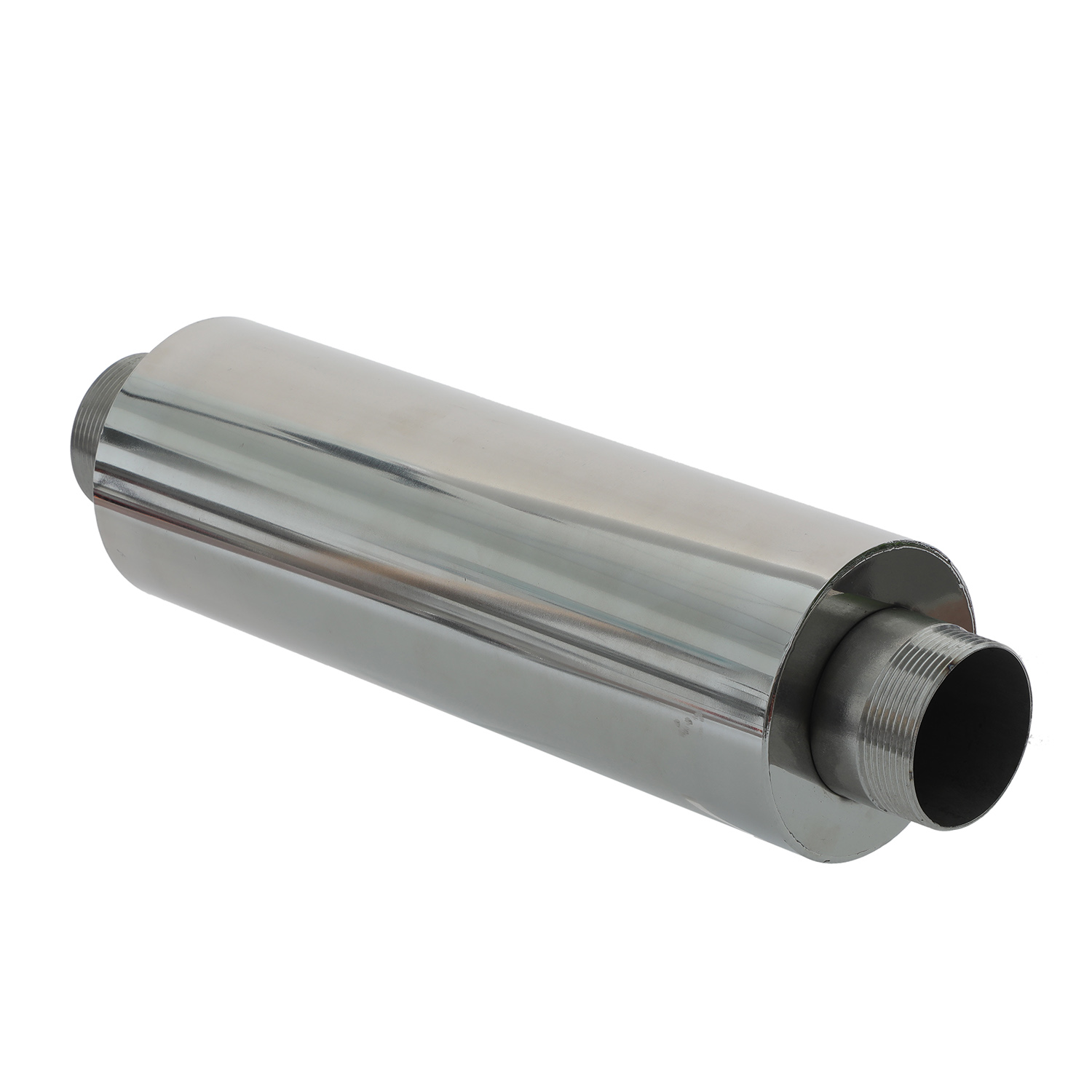

D166A7616

Noise Reduction via Correct Piping

Excessive noise often results from turbulent airflow caused by poor piping design. Correct pipe diameter selection and smooth internal surfaces help minimize aerodynamic noise.


Vibration Reduction Through Structural Design

Rigid mounting, proper alignment, and supported pipelines significantly reduce vibration. This not only improves workplace comfort but also protects internal components.


Maintenance Accessibility and Long-Term Reliability

Designing for Inspection and Service

Accessory installation should allow sufficient space for inspection, cleaning, and replacement. Avoid routing pipelines in a way that obstructs access to filters, PRVs, or inspection ports.


Preventing Premature Wear

Well-installed accessories reduce abnormal loads, preventing premature bearing wear, seal damage, and impeller imbalance.


Common Installation Errors and How to Avoid Them

Undersized Pipes

Using pipes smaller than the blower port across long distances is one of the most common mistakes. Always prioritize airflow stability over material cost savings.


Unsupported Pipelines

Failing to install pipe supports leads to structural stress and long-term damage. Supports are not optional; they are essential.


Ignoring Safety Accessories

Omitting PRVs or installing them incorrectly exposes the system to avoidable risks. Safety accessories should be considered mandatory components.


Conclusion

The ring blower installation method of accessories directly determines system efficiency, safety, and service life. From pipe diameter selection and leakage prevention to pipeline support and pressure relief valve configuration, every detail matters.

A professionally installed accessory system ensures stable airflow, controlled pressure, reduced energy consumption, and long-term reliability. When executed correctly, these installation principles enable ring blowers to deliver consistent, high-performance operation across demanding industrial applications.
