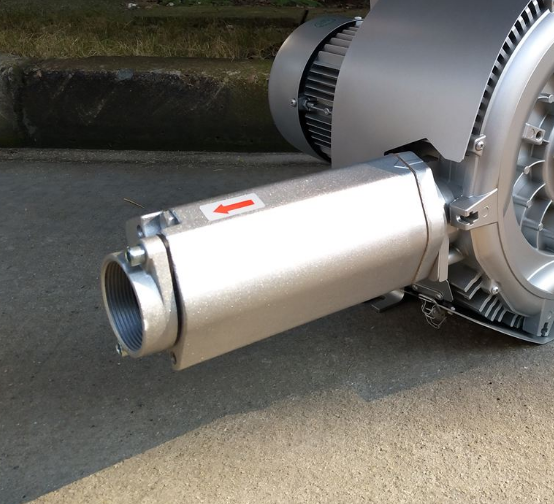

When selecting a Ring Blower (Side Channel Blower) for industrial applications, airflow, pressure, and motor power are usually the first specifications to consider. However, motor insulation class and temperature rise class are equally important for long-term reliability.
Two common specifications found in industrial blower motors are:
Insulation Class: F
Temperature Rise Class: B
What do these ratings mean, and how do they affect blower performance, motor lifespan, and continuous operation?
Motor insulation class indicates the thermal endurance of the electrical insulation system used in the motor windings.
During operation, the motor generates heat due to electrical losses, mechanical friction, and operating load. Excessive heat can accelerate insulation aging and eventually lead to motor failure.
Insulation Class | Thermal Class Temperature |
|---|---|
Class A | 105°C |
Class B | 130°C |
Class F | 155°C |
Class H | 180°C |
Class F insulation has a thermal class rating of 155°C, providing greater thermal endurance than Class B insulation.
However, this does not mean the blower motor should normally operate at 155°C. Its actual operating temperature depends on the motor design, load, ambient conditions, and cooling performance.
Temperature rise refers to the increase in motor winding temperature above the reference ambient temperature during operation.
It can be expressed as:
\[ \text{Temperature Rise}=\text{Winding Temperature}-\text{Ambient Temperature} \]
For many standard industrial motors, Class B temperature rise corresponds to an 80 K limit, typically measured using the resistance method under specified conditions.
Assuming a reference ambient temperature of 40°C:
Ambient temperature: 40°C
Class B winding temperature rise: 80 K
Average winding temperature: 120°C
Typical winding hot-spot allowance: 10 K
Estimated hot-spot temperature: 130°C
These values are typical engineering references. The applicable limits depend on the motor type, measurement method, and relevant standards, such as IEC 60034-1.
One important advantage of this combination is the additional thermal margin.

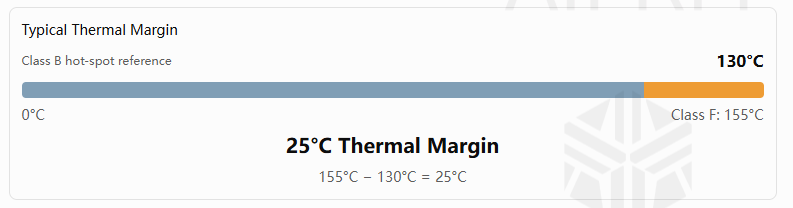

Class F insulation has a thermal class rating of 155°C, while Class B temperature rise design typically corresponds to a winding hot-spot reference temperature of approximately 130°C.
This extra thermal margin can help reduce insulation aging and improve long-term motor reliability under properly controlled operating conditions.
Improved thermal endurance: Class F insulation provides a higher thermal rating.
Better temperature control: Class B temperature rise limits winding temperature under rated conditions.
Longer insulation life potential: Lower operating temperatures can slow thermal aging.
Greater reliability: Additional thermal margin helps accommodate normal temperature variations.
Continuous-operation suitability: Supports reliable thermal design for applications requiring extended operation, when the blower is appropriately rated.
The additional 25°C margin should not be interpreted as permission to overload the motor or operate beyond the manufacturer's specified ambient temperature.
Motor temperature is influenced by several operating factors.
A Ring Blower operating outside its recommended performance range may experience excessive electrical or thermal loading.
Selecting a blower based on its pressure–flow–power curve helps prevent overheating.
High ambient temperatures and restricted ventilation reduce motor cooling efficiency.
Adequate installation clearance and unobstructed cooling passages are essential for stable operation.
Incorrect voltage, voltage imbalance, and unsuitable variable-frequency operation can increase motor losses and temperature.
Always verify that the blower is compatible with the available power supply and operating frequency.
Ring Blowers are widely used in industrial systems that demand consistent airflow or vacuum pressure.
Wastewater Treatment
Ring Blowers provide air for certain biological aeration systems. Reliable motor temperature control supports continuous aeration operations.
Aquaculture Aeration
Stable airflow supports oxygen transfer in fish and shrimp farming, where equipment reliability is particularly important.
Vacuum Holding Systems
In CNC machining, printing, and packaging, Ring Blowers generate vacuum for material holding and positioning.
Industrial Air Knife Drying
Ring Blowers supply high-velocity airflow for removing surface moisture from bottles, packaging, and manufactured components.
Class F insulation and Class B temperature rise are two important indicators of Ring Blower motor thermal design.
Class F insulation provides a thermal rating of 155°C, while Class B temperature rise generally corresponds to an 80 K winding temperature rise limit under specified conditions.
Together, they can provide approximately 25°C of additional thermal margin, supporting better insulation durability and long-term motor reliability.
For industrial applications requiring continuous airflow or vacuum, selecting a Ring Blower with appropriate thermal design is an important step toward reliable operation and reduced maintenance risk.
