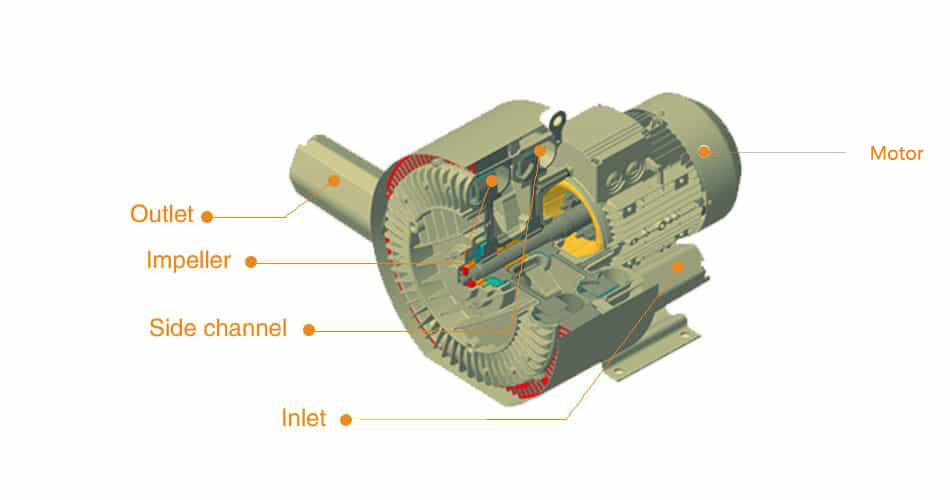

A ring blower operates on an advanced air movement principle that transforms kinetic energy into pressure through continuous circulation. Inside the blower housing, a rapidly rotating impeller draws in air through the inlet. As the impeller spins, air molecules are caught between the blades and guided along a spiral-shaped channel surrounding the impeller.
With each rotation, the air gains speed and pressure in a regenerative cycle — a process where the same air passes through the impeller blades multiple times before being discharged. This repeated acceleration builds up pressure gradually, producing a steady, pulsation-free airflow.
Unlike positive displacement blowers that trap and compress air mechanically, the ring blower achieves compression dynamically, using only the momentum of rotating air. The absence of friction-based components not only makes the system efficient but also enables smooth, vibration-free operation with minimal wear over time.
One of the defining advantages of a ring blower is its completely oil-free operation. This design characteristic isn’t a coincidence — it’s the direct result of precise mechanical engineering that eliminates the need for lubrication inside the air chamber.
The impeller and housing never touch during operation. Air compression occurs purely through velocity transfer, not by squeezing or rubbing components together. Because of this, there’s no need for oil or grease within the compression zone, ensuring that the discharged air remains perfectly clean.
The blower’s bearings are sealed and mounted outside the airflow channel. They are factory-lubricated for life, which prevents any chance of oil leakage into the air stream. This thoughtful design ensures that the internal airflow stays uncontaminated, making the ring blower a reliable choice for industries where air purity is critical, such as food production, pharmaceuticals, and electronics.
In most configurations, the impeller is mounted directly on the motor shaft. This direct-drive system removes the need for gearboxes or belt transmissions that typically require oil. As a result, maintenance is simpler, efficiency is higher, and there’s zero oil carryover risk.
Instead of relying on oil to seal gaps or cool components, the ring blower depends on its regenerative mechanism — accelerating air in a closed loop to achieve the desired pressure. The process is inherently clean, producing dry, oil-free air with no additional filtration required.
The benefits of oil-free operation become even clearer when compared to traditional oil-lubricated blowers. Below are a few examples that highlight how ring blowers offer superior cleanliness, reliability, and simplicity.
Rotary vane blowers use sliding vanes inside a rotating cavity to compress air. These vanes are in constant contact with the housing walls, generating friction that requires continuous lubrication. Oil acts as both a sealant and a cooling agent. However, this introduces contamination risks — even with advanced filtration systems, oil mist or vapor can enter the air stream.
In contrast, the ring blower achieves compression without friction, eliminating any dependence on oil. This makes it ideal for processes that cannot tolerate even trace amounts of contamination.
Screw blowers rely on two interlocking rotors that compress air as they rotate. They require a precise film of oil between the screws to seal and reduce wear. Despite the use of separators, oil carryover is a common issue, leading to frequent maintenance and filter replacements.
A ring blower bypasses this complexity. Since it has no rotors in contact and no oil inside the compression path, the discharged air is naturally clean — saving costs on filtration and extending service intervals.

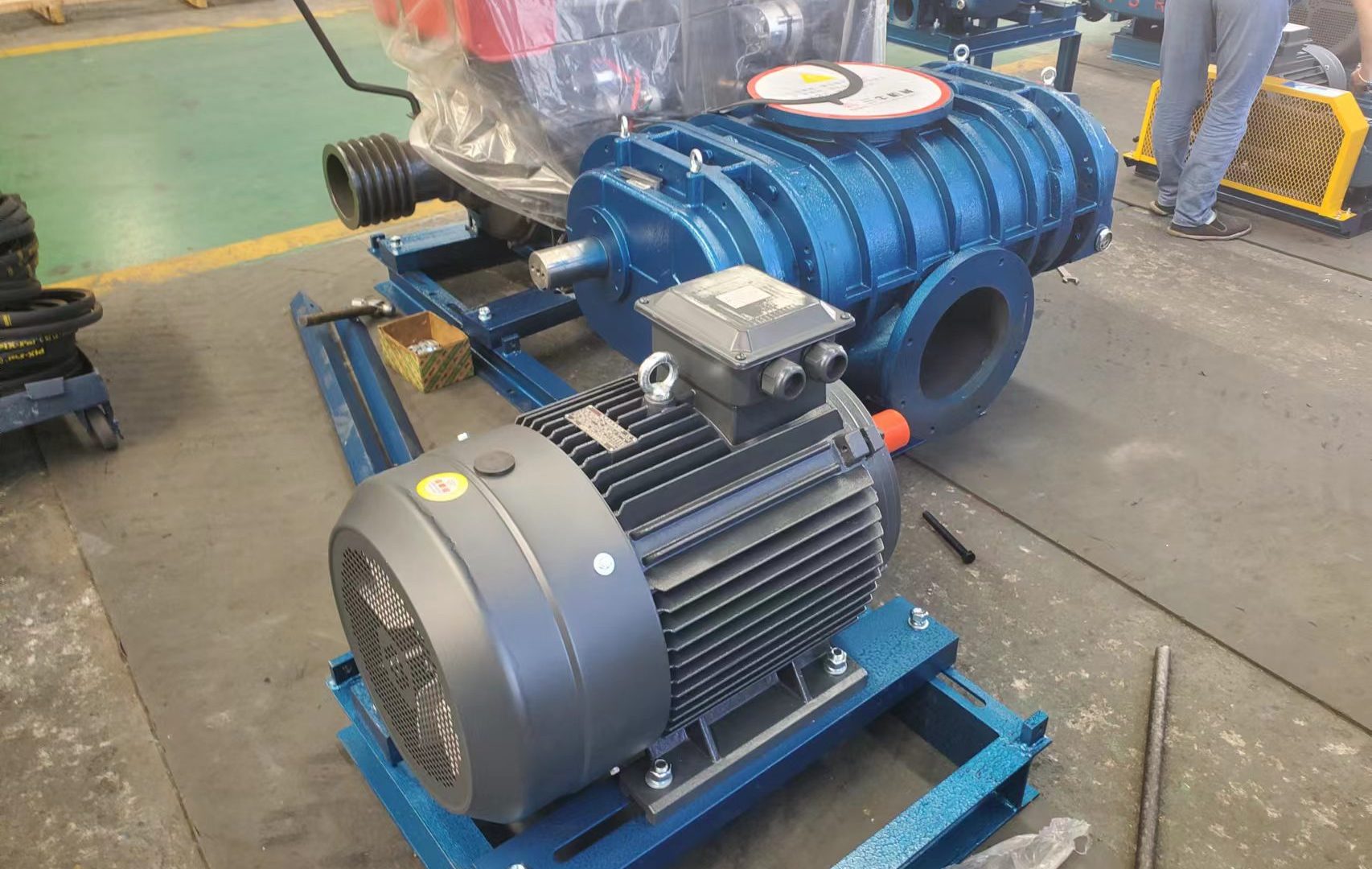

Roots-type blowers are commonly used for heavy-duty industrial applications. While the air itself doesn’t directly mix with oil, their gearboxes and bearings are oil-lubricated. Over long operation periods, heat and pressure can cause oil vapor migration, which poses a risk for clean applications.
By comparison, ring blowers offer a more reliable solution for continuous, oil-free operation. They deliver a stable airflow with lower noise, less vibration, and simpler maintenance requirements.
The most obvious advantage of oil-free operation is purity. Air discharged from a ring blower is completely free from oil particles or vapors, ensuring that sensitive processes — such as chemical processing, laboratory aeration, or medical packaging — remain uncontaminated.
Because there are no lubricants to replace or filters to clean, maintenance becomes minimal. Operators benefit from longer service life, fewer shutdowns, and lower total ownership costs. The sealed bearings and direct-drive system further reduce the need for ongoing service.
Oil-free operation also contributes to environmental protection. There’s no need to dispose of waste oil or manage oil-laden filters. Combined with high-efficiency IE4 or IE5 motors, ring blowers provide significant energy savings while maintaining quiet and smooth performance.
The non-contact design of the impeller ensures consistent pressure output without degradation from friction or heat. Even after thousands of operating hours, performance remains stable — an important factor in critical industrial applications where reliability matters.
Because of their clean and efficient operation, ring blowers are widely used in industries where air quality is non-negotiable. Common applications include:
Wastewater treatment – Supplying oxygen for biological aeration processes.
Food and beverage – Providing hygienic air for drying, conveying, and packaging.
Pharmaceutical production – Ensuring contamination-free air during tablet coating and drying.
Electronics manufacturing – Maintaining static-free and dust-free environments.
Pneumatic conveying – Transporting powders or granules safely without oil residue.
These applications highlight the versatility and trustworthiness of oil-free air systems in both clean and heavy-duty environments.
The oil-free operation of a ring blower represents a perfect blend of intelligent engineering and environmental responsibility. Its regenerative compression mechanism eliminates the need for lubrication, ensuring clean, dry, and reliable airflow across a broad range of industrial applications.
When compared to oil-lubricated systems like rotary vane, screw, or Roots blowers, the ring blower stands out for its simplicity, cleanliness, and long-term efficiency. With minimal maintenance requirements, lower noise, and no risk of oil contamination, it provides a sustainable solution for modern industries seeking dependable and eco-friendly air technology.
As industries continue to move toward greener and cleaner production standards, the ring blower’s oil-free design ensures it remains a leading choice for safe, efficient, and cost-effective air movement.
