In industrial air knife systems, performance is ultimately defined by airflow stability, pressure consistency, and energy efficiency. At the heart of these systems, ring blowers function as the primary air power supply, while air knives act as precision tools that reshape, accelerate, and direct airflow into controlled, high-velocity air curtains. This division of labor is not incidental; it is the result of engineering optimization that allows air knife systems to achieve superior drying, cleaning, cooling, and debris removal performance across a wide range of industries.
Unlike compressed air solutions that rely on intermittent bursts and high operational costs, ring blowers deliver continuous, oil-free airflow with stable pressure characteristics. This makes them particularly suitable for air knife applications where uniform airflow distribution and long-duty cycles are essential. When paired correctly, ring blowers and air knives form an integrated system in which airflow generation and airflow shaping are precisely aligned.
Ring blowers, also referred to as regenerative blowers or side channel blowers, are designed to generate medium-pressure, high-volume airflow through a non-contact impeller mechanism. This design ensures minimal wear, low vibration, and long service life. In air knife systems, the role of the ring blower is singular and critical: to provide a consistent, uninterrupted source of pressurized air.
Key characteristics that make ring blowers ideal for air knife systems include:
Continuous duty capability for twenty-four-hour industrial operation
Oil-free airflow, preventing contamination in food, pharmaceutical, and electronics applications
Stable pressure curves, enabling uniform air knife performance
Low maintenance requirements, reducing total cost of ownership
Without a properly selected ring blower, even the most advanced air knife design cannot achieve optimal performance.
While the ring blower generates airflow, the air knife is responsible for transforming that airflow into a precise, high-velocity air sheet. Through internal chambers and engineered outlet slots, air knives convert volumetric airflow into a laminar or semi-laminar air curtain. This allows the system to:
Remove water from product surfaces
Blow off dust, particles, or debris
Create air barriers or separation zones
Assist in cooling or drying processes
The effectiveness of this transformation depends heavily on the pressure and volume characteristics delivered by the ring blower, reinforcing the importance of blower selection.
Compressed air is widely recognized as one of the most expensive utilities in industrial environments. Air knife systems powered by compressed air often suffer from high energy consumption, pressure losses, and inconsistent airflow. In contrast, ring blower-driven air knife systems offer a significantly lower cost per cubic meter of air delivered.
Ring blowers provide:
Direct airflow generation without energy-intensive compression stages
Reduced leakage losses compared to compressed air piping
Stable operating efficiency across long production cycles
For facilities seeking cost optimization without sacrificing performance, ring blowers represent a clear advantage.
Air knife performance is directly tied to airflow stability. Fluctuations in pressure or volume can lead to uneven drying, incomplete cleaning, or inconsistent product quality. Ring blowers excel in maintaining steady airflow output, ensuring that air knives operate within their designed performance envelope at all times.
This stability is especially critical in:
Conveyor-based drying systems
High-speed packaging lines
Continuous coating or washing processes
Every air knife has defined operating parameters, including required airflow volume and inlet pressure. Ring blower selection must be based on these parameters rather than motor power alone. Oversized blowers can waste energy, while undersized units result in insufficient air velocity.
A properly engineered system ensures:
Optimal air knife exit velocity
Uniform airflow distribution across the entire knife length
Reduced system noise and vibration

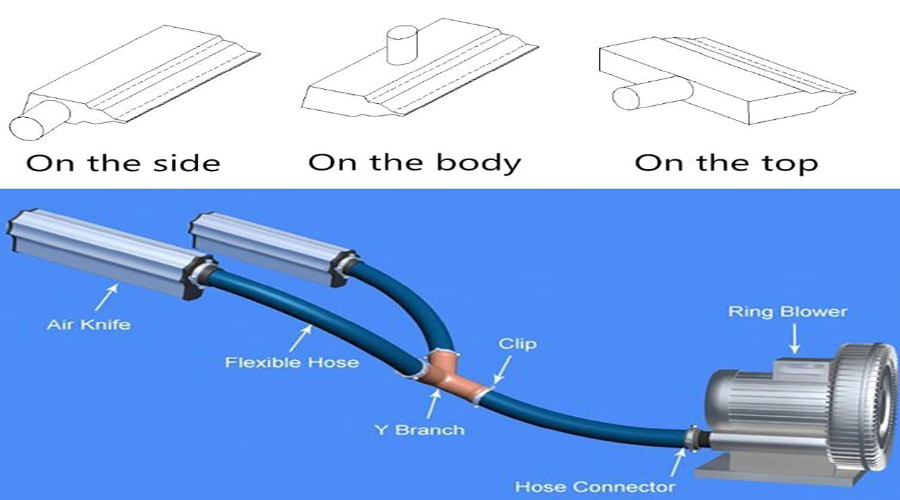

The connection between the ring blower and air knife plays a significant role in system efficiency. Poorly designed piping can introduce pressure losses that negate blower performance advantages. Best practices include:
Minimizing pipe length and bends
Using appropriately sized ducts or hoses
Ensuring airtight connections
These considerations help preserve the blower's delivered pressure and maximize air knife effectiveness.

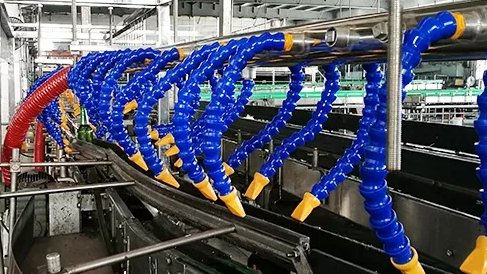

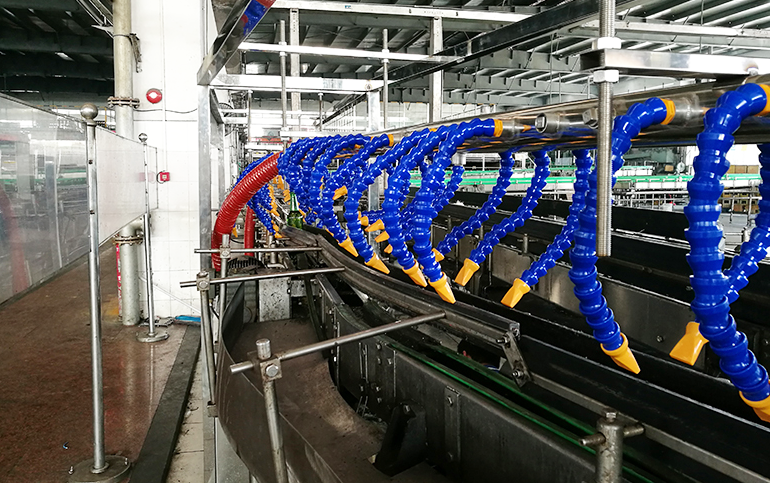

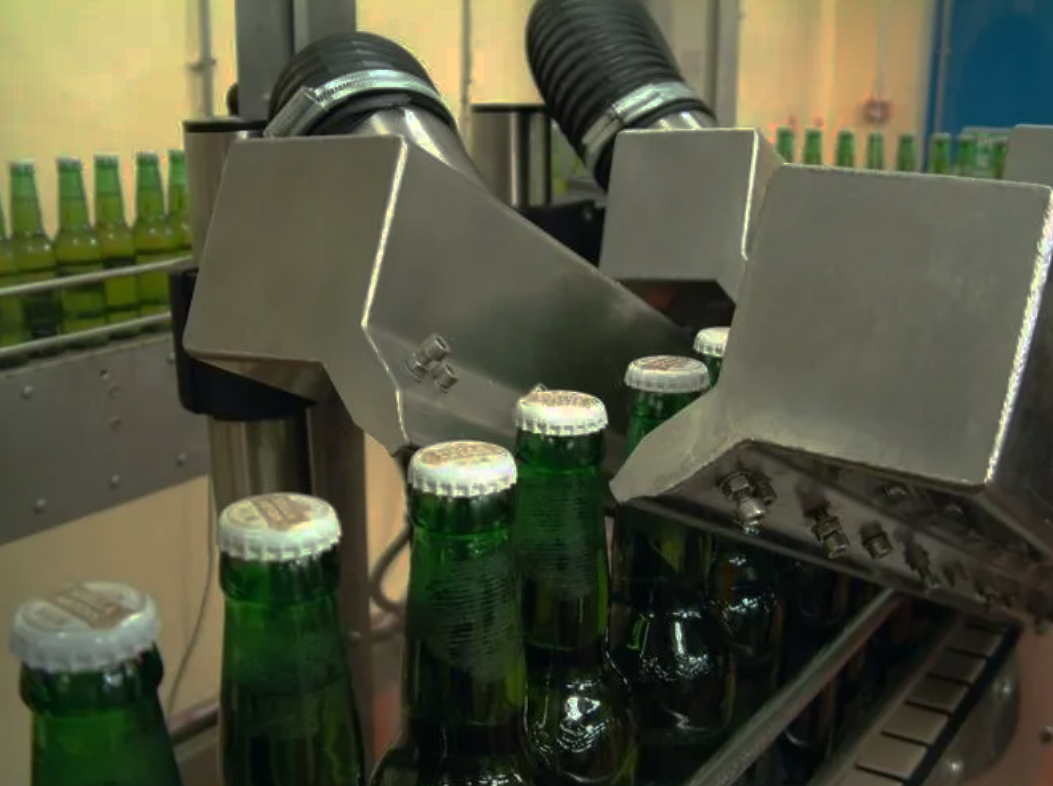

In food processing environments, oil-free and hygienic airflow is mandatory. Ring blower-powered air knives are widely used for drying bottles, cans, and packaging surfaces after washing. The absence of oil contamination and the ability to operate continuously make ring blowers an industry standard.
Metal parts exiting washing or surface treatment lines require rapid and thorough drying to prevent corrosion. High-velocity air knives powered by ring blowers provide uniform drying without physical contact, protecting sensitive surfaces and coatings.
In electronics manufacturing, even microscopic particles can compromise product quality. Ring blower air knife systems deliver controlled airflow that removes dust and debris without introducing moisture or contaminants.
From ink drying to debris removal on substrates, air knife systems powered by ring blowers support high-speed production lines with consistent, repeatable airflow performance.
Air knives do not generate airflow; they refine it. The ultimate performance ceiling of any air knife system is determined by the quality, stability, and efficiency of the air source. Ring blowers, by design, deliver the precise balance of pressure and volume required for industrial air knife applications.
By functioning as the main air supply engine, ring blowers allow air knives to focus exclusively on airflow transformation, resulting in systems that are efficient, reliable, and capable of meeting demanding industrial standards.
In modern industrial environments, where efficiency, reliability, and product quality are non-negotiable, ring blowers stand as the foundational component of effective air knife systems. Their ability to provide continuous, oil-free, and stable airflow makes them the preferred solution across industries ranging from food processing to advanced manufacturing.
When correctly selected and integrated, ring blowers enable air knives to perform their role with precision—reshaping airflow trajectories, increasing velocity, and delivering consistent results. This synergy is the reason ring blower-powered air knife systems continue to outperform alternatives and set the benchmark for industrial airflow solutions.
