In a side channel blower, the word “stage” refers to the number of impellers used inside the blower. Different stages affect the blower’s pressure and vacuum performance.
Simply speaking:
Single stage = one impeller
Double stage = two impellers
The more stages a blower has, the higher pressure or vacuum it can produce.
Understanding this difference is important when selecting the right blower for industrial applications.
A side channel blower uses a rotating impeller to move air through a side channel inside the housing. During rotation, the air gains energy continuously, creating pressure or vacuum.
Compared with other air-moving equipment, side channel blowers offer:
Oil-free airflow
Low maintenance
Continuous operation
Compact structure
Stable airflow
The stage design directly affects blower performance.

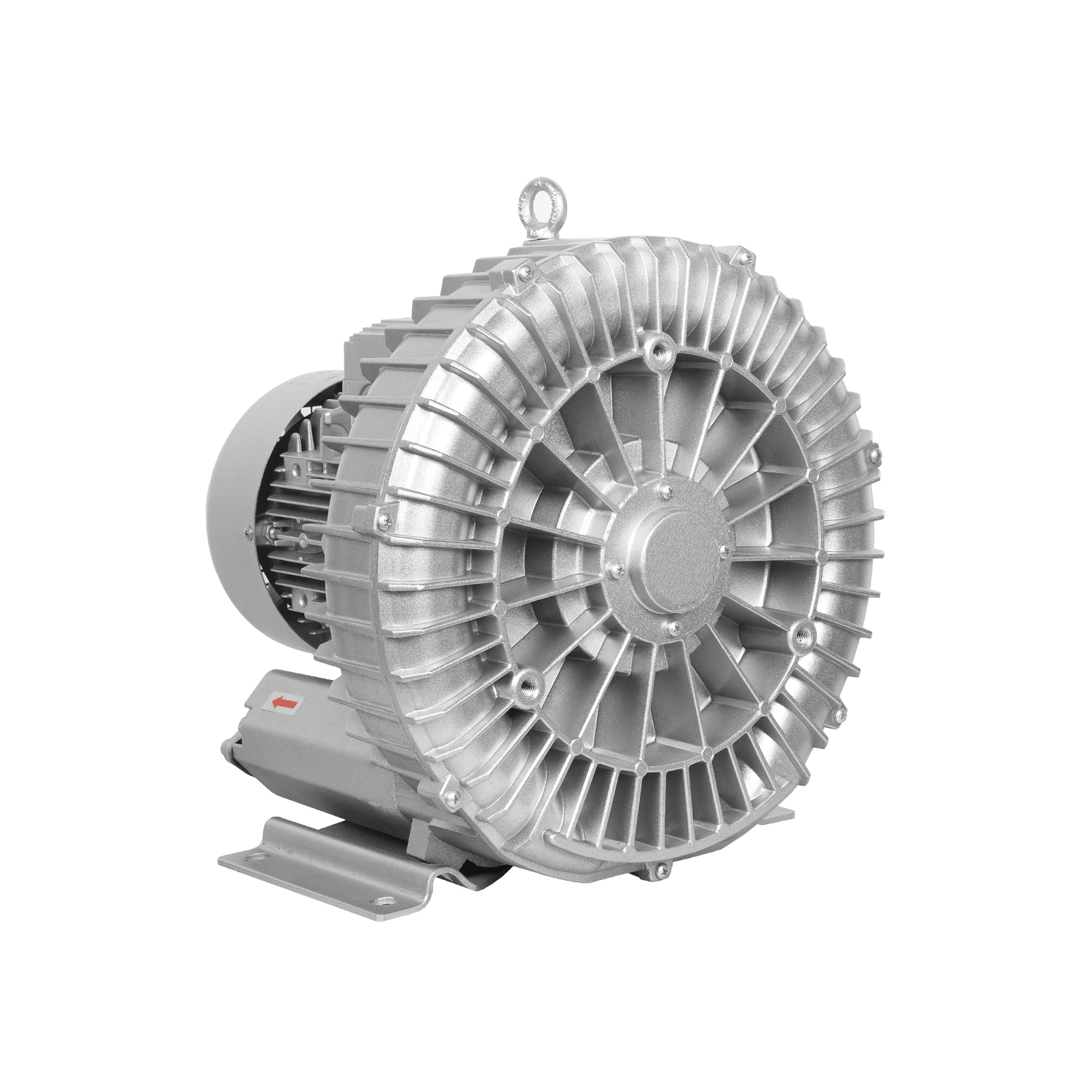

A single stage blower contains one impeller and one compression process. Air enters through the inlet, passes through the impeller once, and exits from the outlet.
Single stage blowers are widely used because they provide good airflow with lower operating pressure.
Advantages include:
Simple structure
Lower cost
Lower operating temperature
Easier maintenance
Higher airflow volume
Single stage side channel blowers are commonly used in:
Aquaculture aeration
Packaging machines
PCB cleaning
Dust collection
Printing equipment
Textile machinery
These applications usually require stable airflow rather than high pressure.

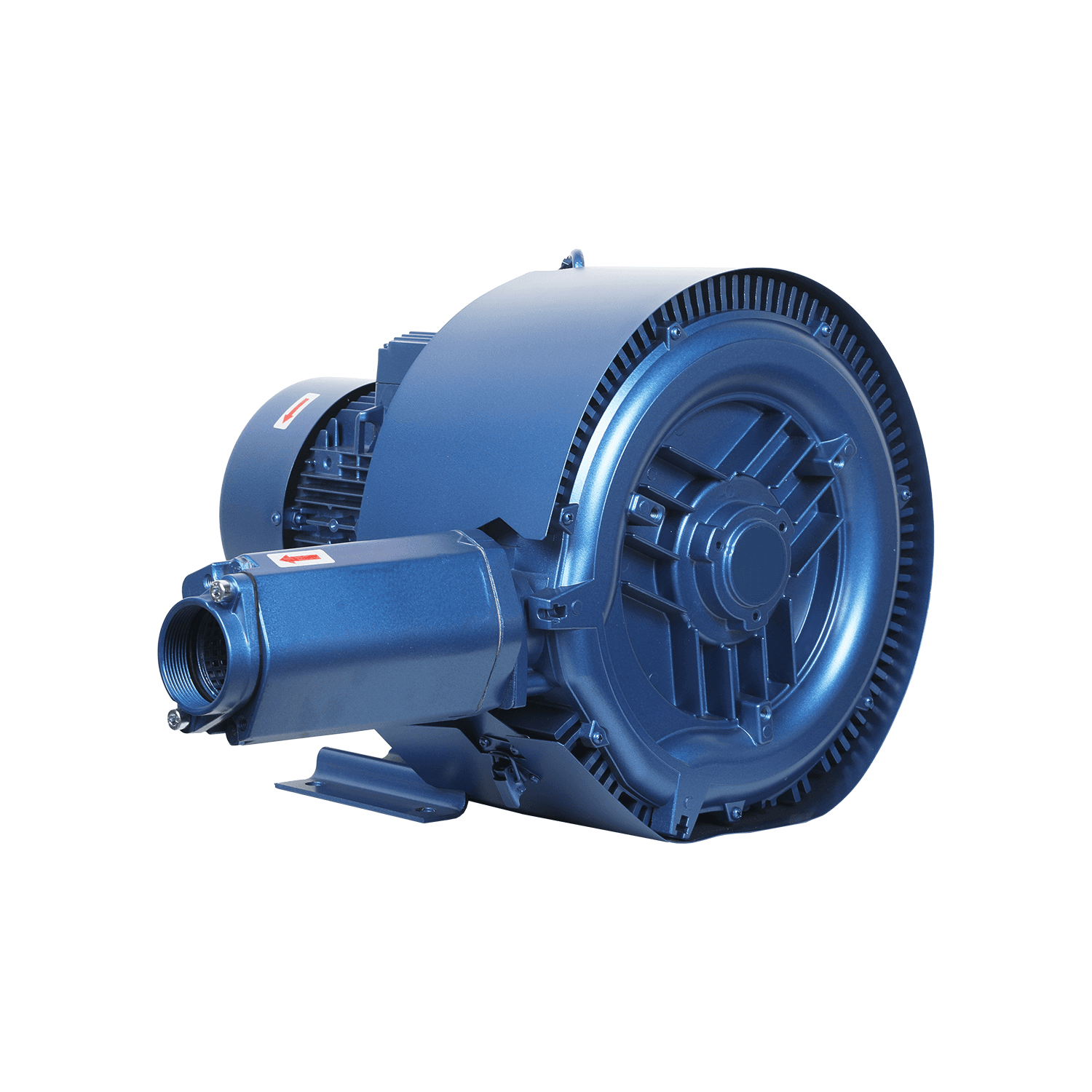

A double stage blower uses two impellers connected in series. After the first compression, the air enters the second stage for additional pressure increase.
This design provides stronger pressure and vacuum performance.
Compared with single stage models, double stage blowers offer:
Higher pressure
Stronger vacuum capability
Better suction performance
Improved performance in long pipelines
Because the air is compressed twice, the blower can handle higher system resistance.
Double stage side channel blowers are often used in:
Pneumatic conveying
Wastewater treatment
Central vacuum systems
Industrial drying
Vacuum adsorption equipment
Material handling systems
These applications usually require stronger pressure or vacuum capability.
The biggest difference is pressure output.
Type | Pressure Performance | Airflow |
|---|---|---|
Single Stage | Lower | Higher |
Double Stage | Higher | Lower |
Single stage blowers focus more on airflow volume, while double stage blowers focus more on pressure.
Double stage blowers generally produce more heat because the air is compressed twice.
Proper ventilation is important for stable operation.
Higher pressure operation usually requires more energy. Selecting the correct stage helps avoid unnecessary power consumption.
Different applications require different pressure levels.
For example:
Aeration systems → Single stage
Pneumatic conveying → Double stage
Vacuum lifting → Double stage
Long pipelines, filters, and pipe bends increase resistance. In these situations, double stage blowers may perform better.
Higher stage does not always mean better. Using a double stage blower in a low-pressure application may increase:
Energy consumption
Operating temperature
Equipment cost
The best choice is the blower that matches the actual working condition.
The “stage” of a side channel blower refers to the number of impellers used for air compression. Single stage blowers are suitable for applications requiring higher airflow and lower pressure, while double stage blowers provide stronger pressure and vacuum capability.
Choosing the correct stage depends on:
Pressure requirement
Airflow demand
Pipeline resistance
Application type
Understanding these differences helps improve system efficiency, reduce energy consumption, and achieve more stable industrial operation.
