Biogas and methane gas are widely utilized for energy recovery, but both present critical safety concerns due to their extremely flammable and explosive properties. The key component, methane (CH₄), has a narrow flammability range (5–15% in air), making controlled transport essential. Any mechanical system involved in moving or compressing these gases must ensure complete leak-proof sealing, anti-spark engineering, and overheat prevention.
Since both gases are lighter than air, they can rise and accumulate under ceilings or in confined areas, increasing explosion risk. Safe handling requires systems specifically engineered to comply with explosion protection regulations, particularly in the transport phase where the use of blowers becomes unavoidable.

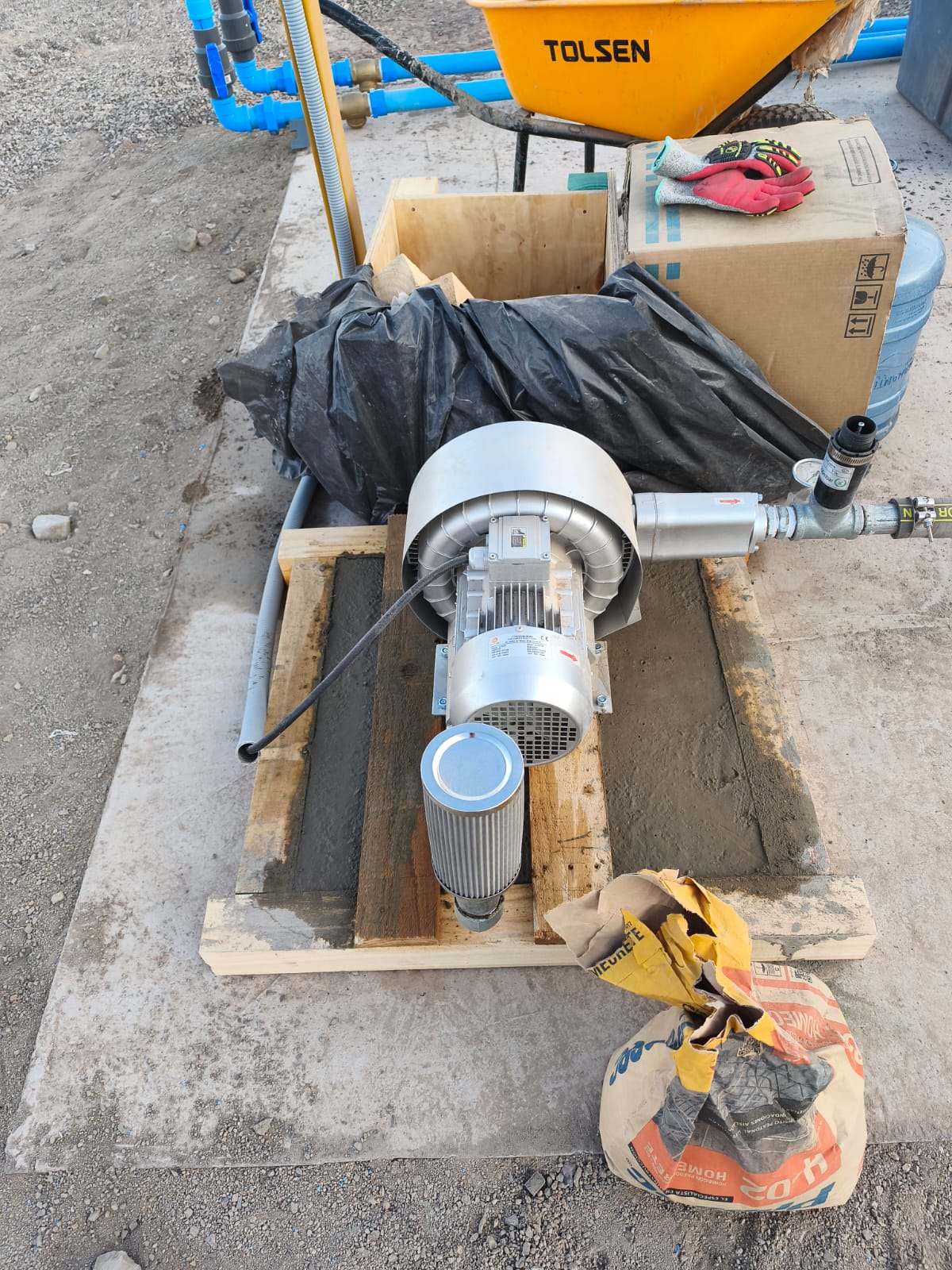

Anaerobic digestion is a core process in wastewater treatment, producing biogas rich in methane. This gas must be safely extracted and transferred to energy conversion units. In these environments, side channel blowers are frequently used due to their ability to handle non-aggressive gas under moderate pressure with steady, oil-free airflow.
These blowers are ideal for gas circulation and transfer in gas-tight systems and are often integrated with explosion-proof motors that meet ATEX and IECEx standards. In wastewater facilities, where reliability and 24/7 operation are vital, side channel blowers offer low maintenance and long service life.
In the agricultural sector, particularly on livestock farms, biogas production from manure and organic waste is becoming more common. Transferring this gas from digesters to storage or combustion units demands safe, continuous airflow with no contamination risk.
Side channel blowers are widely adopted in these setups due to their contactless internal design, which prevents ignition hazards. Their oil-free operation and hermetically sealed housing ensure that no gas escapes and no foreign particles enter the system—making them particularly suited to farm-level biogas systems, where safety, simplicity, and resistance to dirt and moisture are essential.
These facilities refine raw biogas into high-purity biomethane suitable for injection into natural gas pipelines. Here, consistent flow rates, controlled pressures, and uninterrupted transfer are non-negotiable. Side channel blowers, equipped with VFDs (Variable Frequency Drives), allow precise adjustment to the required flow and pressure profiles.
What makes side channel blowers especially suitable for this stage is their ability to maintain dry, clean, and pulsation-free air movement, even when dealing with moisture-laden or chemically active gas streams. Their compact footprint also supports integration into skid-mounted upgrading systems.

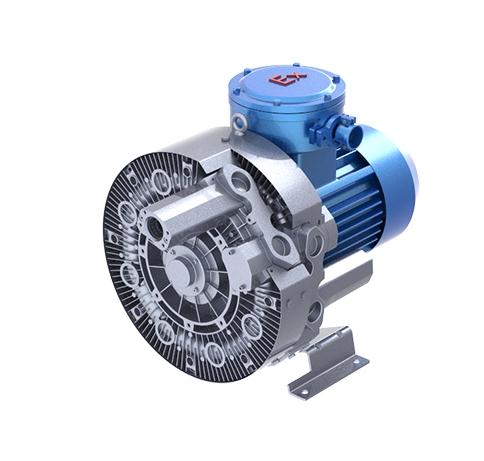

To eliminate ignition risks, blowers operating in biogas and methane environments must feature explosion-proof motors. These motors are engineered to contain internal explosions, preventing flame propagation. Certified to ATEX Zone 1/Zone 2 or Class I, Division 1, they are designed for hazardous area compliance.
Side channel blowers are often fitted with these motors as standard, ensuring their suitability for both indoor and outdoor hazardous zones.
To prevent leakage and contamination, blowers must be hermetically sealed and operate oil-free. Side channel blowers are ideally suited due to their non-lubricated, frictionless design, which avoids the risk of lubricants coming into contact with flammable gas.
Features supporting gas-tight performance include:
Double mechanical seals
Closed impeller chambers
Sealed bearing housings
These elements ensure safe biogas delivery without the risk of escape or ignition.
Side channel blowers intended for biogas or methane handling are manufactured using electrically conductive, antistatic materials to prevent the buildup of static electricity, which could serve as an ignition source. Materials such as stainless steel, anodized aluminum, and PTFE coatings are common choices.
This construction is especially beneficial in agricultural or landfill environments, where the gas may carry corrosive byproducts like ammonia or hydrogen sulfide.
To further enhance safety, side channel blowers often feature real-time diagnostics, including:
Thermal sensors
Vibration monitoring
Pressure feedback
Speed regulation via VFD
These allow operators to detect faults and respond before conditions become hazardous. Remote alerts and automated shutdown protocols are also integrated to ensure rapid response in critical situations.
In highly sensitive environments, side channel blowers may be installed within pressurized enclosures or gas-purged cabinets, designed to keep any ignition sources physically separated from the gas stream. This additional protection is sometimes required in Zone 1/21 installations, especially where the gas may contain volatile organic compounds (VOCs).
Biogas and methane applications pose unique engineering challenges, particularly when it comes to gas transfer and compression. The use of side channel blowers provides a proven and dependable solution, offering a blend of safety, efficiency, and low maintenance that meets the demands of hazardous gas environments.
With their explosion-proof motors, gas-tight assemblies, and corrosion-resistant construction, side channel blowers deliver reliable performance in diverse sectors like wastewater treatment, agriculture, landfills, and biogas upgrading. Their oil-free, pulsation-free design ensures clean operation, while intelligent control systems provide real-time safety and efficiency.
As the world shifts toward sustainable energy and carbon neutrality, the role of safe and efficient gas delivery systems becomes even more crucial. Side channel blowers, tailored for explosive gases, are poised to lead this transition by offering secure, scalable, and environmentally responsible solutions.
