Side channel blowers, also known as regenerative or ring blowers, are widely used in industrial environments where corrosion, abrasion, and thermal challenges are common. A critical aspect that ensures the reliability and longevity of these blowers is the type of surface coating material applied to their components. The correct coating enhances resistance to wear, protects against aggressive gases or liquids, and improves the blower's performance in both standard and demanding applications.
Epoxy coatings are a preferred choice for industrial applications due to their chemical resistance, strong adhesion, and mechanical durability. Typically composed of a resin and hardener, epoxy forms a rigid, protective shell once cured, offering excellent protection against moisture, acidic vapors, and abrasive dust.
Key Benefits:
Exceptional resistance to corrosion and harsh chemicals
Long-term protection in wet or chemically aggressive environments
Adheres well to metals like steel, aluminum, and cast iron
Ideal for both interior and exterior blower parts
Common Applications:
Waste gas extraction systems
Sewage treatment facilities
Industrial vacuum conveying systems
Epoxy coatings are available in various formulations, including high-build versions for added thickness or solvent-free epoxies for VOC-compliant installations.

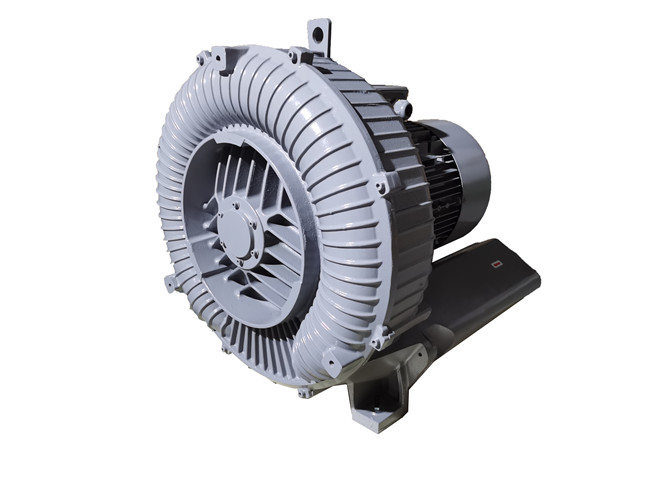

For blowers made from aluminum alloys, anodizing is a preferred surface treatment. It enhances the natural oxide layer of aluminum, transforming the surface into a durable, corrosion-resistant, and electrically non-conductive finish.
Key Benefits:
Superior corrosion protection without the need for paints or films
Increased surface hardness, improving resistance to scratches and abrasion
Retains the natural metallic appearance
Compatible with color dyes for identification or aesthetic appeal
Limitations:
Only applicable to aluminum
Not suitable for highly acidic or alkaline environments without sealing
Ideal Use Cases:
Food and beverage industry (when sealed for hygiene)
Cleanroom systems
Compact blower systems where lightweight is critical

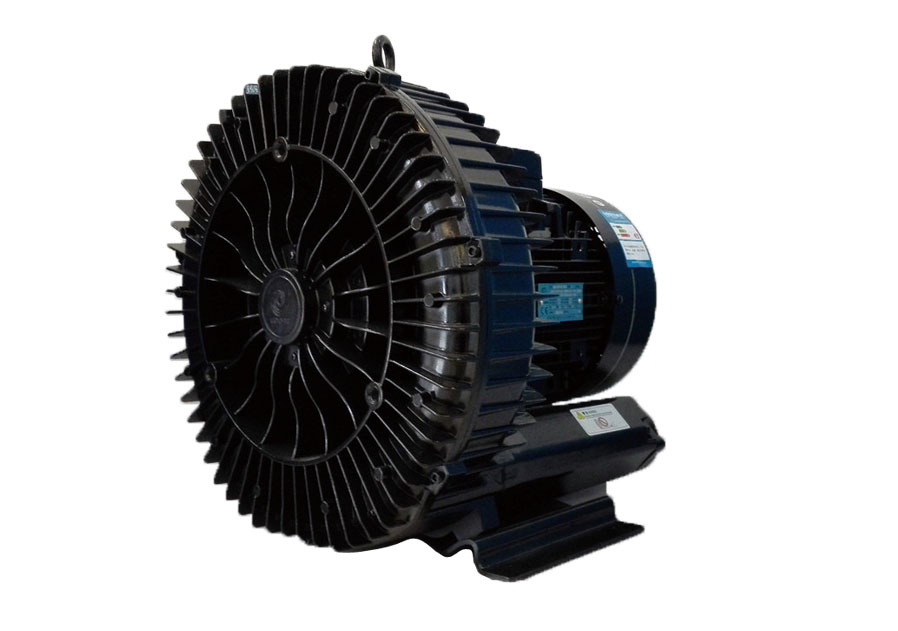

Teflon coating, a proprietary form of PTFE (polytetrafluoroethylene), offers non-stick, chemically inert, and high-temperature-resistant surface protection. This type of coating is ideal in environments where aggressive chemicals, sticky substances, or heat exposure are present.
Key Benefits:
Outstanding chemical resistance, including acids, bases, and organic solvents
Excellent thermal endurance, typically up to 260°C (500°F)
Ultra-low friction coefficient
Non-stick properties prevent buildup of dust, resins, or organic materials
Applications:
Blowers used in pharmaceutical manufacturing
Chemical processing systems
Food drying and sugar processing lines
Blowers in humid, acidic gas environments
Teflon coatings are typically applied via spray and bake methods and may include multiple layers for enhanced performance. Although more expensive than traditional coatings, the performance gains and lower maintenance needs justify the investment in demanding conditions.
Uncoated or poorly coated blower surfaces are prone to oxidation, rust, and degradation, especially when exposed to humidity, salt spray, or corrosive chemicals. Coatings like epoxy and Teflon form an impermeable barrier, significantly increasing the blower’s resistance to corrosion.
Proper coating reduces wear on both internal and external parts, including the housing, impellers, and inlet/outlet ports. This minimizes the risk of early failure, extends the service life, and lowers the total cost of ownership (TCO).
In sectors like food processing or pharmaceuticals, cleanliness is paramount. Teflon-coated blowers provide non-stick surfaces that are easy to clean, reducing contamination risk and saving time during washdowns.
Coated blowers can also carry custom colors for branding or compliance purposes. Epoxy coatings, for example, can be pigmented to match plant standards or indicate specific blower roles, such as high-pressure or high-temperature models.
If the blower will be exposed to chlorides, acids, or solvents, coatings like Teflon or epoxy should be prioritized due to their inertness and sealing capability.
For high-temperature environments, coatings must withstand heat cycling without flaking or discoloring. Teflon excels in this area, making it ideal for thermal drying or heat recovery ventilation systems.
Not all coatings are suitable for all substrates. Anodizing only works on aluminum, while epoxy and Teflon are more universal. Pre-treatment processes like sandblasting or etching may be required to improve adhesion.
Although premium coatings like Teflon have higher upfront costs, they often deliver significant savings over time through reduced maintenance, fewer failures, and longer intervals between overhauls.
A manufacturer of specialty chemicals needed a side channel blower to move vapors containing traces of hydrochloric acid and solvents. The chosen blower featured:
Teflon coating on all internal surfaces
Epoxy primer base layer for added adhesion
Stainless steel fasteners for corrosion resistance
After two years of operation, inspections revealed no corrosion, no coating degradation, and optimal airflow retention, proving the value of high-performance surface protection.
A well-chosen surface coating plays a central role in the reliability, safety, and durability of side channel blowers. Whether it's the chemical resistance of Teflon, the mechanical strength of epoxy, or the natural protection of anodizing, each type of coating delivers unique benefits tailored to specific industrial demands.
Engineers, maintenance managers, and OEM designers must carefully evaluate their operating conditions and coating performance metrics to select the most appropriate solution. A blower’s surface treatment may appear minor at first glance—but its impact on long-term cost and functionality is profound.
