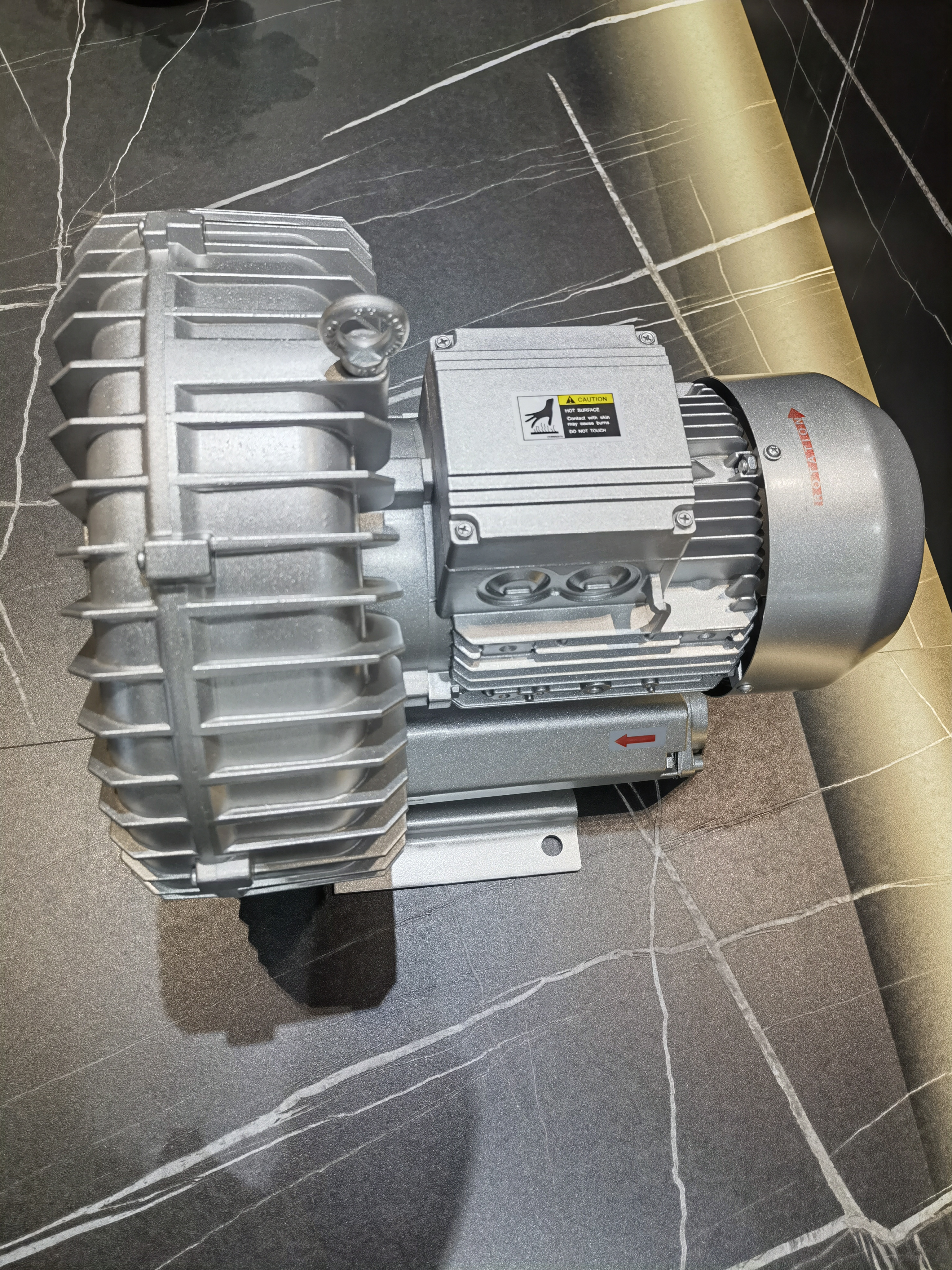

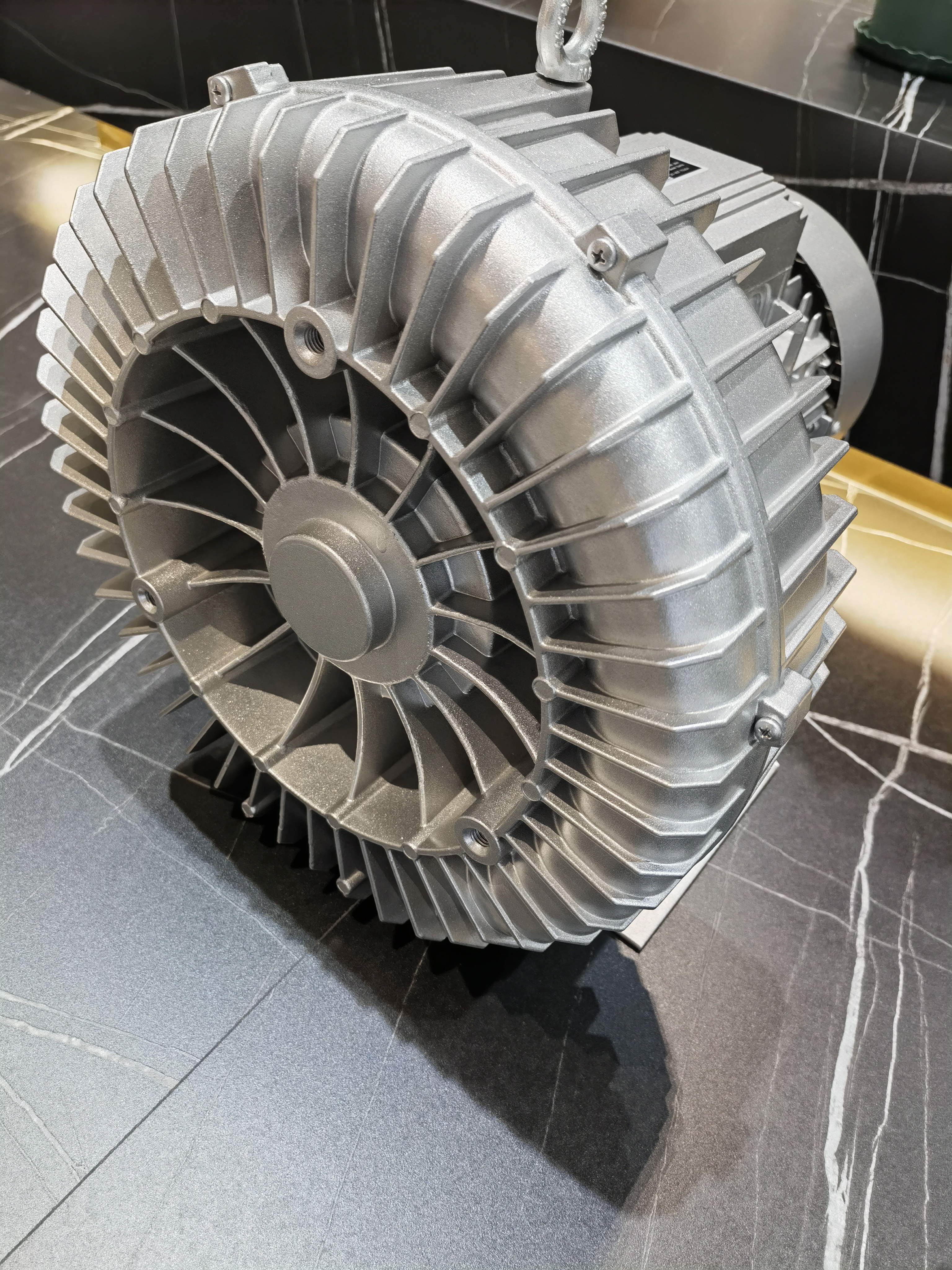

Side channel blowers, also known as regenerative blowers or ring blowers, are a type of non-contact, oil-free blower widely used in various industries for handling air or gas. Their design offers high efficiency, low noise, and low maintenance, making them suitable for continuous operation in demanding applications.
One crucial component that significantly influences the performance, longevity, and stability of a side channel blower is the bearing configuration. Among different designs, the centralized bearing placement is a notable engineering strategy used in advanced side channel blower models.
In traditional blower designs, bearings are often positioned at one or both ends of the impeller shaft. In a centralized bearing configuration, however, the bearing is placed in the middle of the blower body, often between two impellers in a dual-stage blower or at the center of the motor-impeller assembly in a single-stage blower.
This engineering modification might seem minor, but the impact on performance, durability, and application range is substantial. The central placement supports a more balanced operation and enhances blower integrity under extended loads.
One of the primary purposes of a centralized bearing design is to minimize shaft deflection during operation. In blowers with end-bearing configurations, long shafts are prone to bending or misalignment under high-speed rotation and thermal expansion. By positioning the bearing centrally, the shaft is better supported, leading to:
Reduced vibration
Lower mechanical stress
Extended service life for both the shaft and bearing
This stability ensures consistent airflow and performance, particularly in high-pressure applications.
Bearings are among the few moving parts in a side channel blower and typically one of the first components to wear out. The centralized layout distributes the load evenly across the shaft, which:
Reduces localized wear
Minimizes friction
Lowers maintenance frequency
For facilities aiming for long service intervals and reduced downtime, a blower with a center-mounted bearing becomes an economically and operationally smart choice.
During continuous operation, blowers generate substantial heat, especially near the motor and shaft. End-mounted bearings often suffer from unbalanced thermal exposure, accelerating wear. With centralized bearings:
Thermal distribution is more symmetrical
Heat accumulation is minimized
Bearing temperature remains stable, reducing the risk of premature failure
This is particularly important for applications in hot or confined environments, such as in chemical plants or industrial ovens.
Many high-capacity side channel blowers are designed with two impellers, one on each side of the motor. In these designs, the central bearing acts as a pivot, allowing:
Synchronous rotation
Balanced load transfer between both sides
More compact and structurally efficient blower bodies
The result is higher efficiency at lower noise levels, making them ideal for applications requiring both power and quiet operation.
In vacuum lifting, pneumatic conveying, and packaging lines, constant suction and pressure balance are crucial. Blowers with centralized bearings maintain a steady, pulse-free flow that’s ideal for these environments.
Medical-grade devices demand precision and quiet performance. Central bearings minimize operational noise and vibration, which is essential for cleanroom environments, laboratories, and sensitive medical instruments.
Aeration tanks and bioreactors used in wastewater treatment or pharmaceutical production often operate continuously. Centralized bearings ensure that blowers maintain consistent output with minimal intervention, enhancing reliability in biological processes.
For woodworking, metal cutting, or powder handling, side channel blowers with central bearings offer strong negative pressure and superior debris handling capacity with minimal downtime.
While side channel blowers are typically oil-free, sealed bearings still require careful selection. Central placement allows for better protection against contaminants and easier access during maintenance.
Installing a blower with a centralized bearing requires precise alignment during manufacturing. Any misalignment may negate the benefits of the design. However, top-tier manufacturers employ CNC machining and dynamic balancing to ensure optimal performance.
While the initial cost of a blower with a centralized bearing might be higher than a conventional model, the long-term savings in maintenance, energy efficiency, and downtime far outweigh the upfront investment.
| Feature | Centralized Bearing | End-Mounted Bearing |
|---|---|---|
| Shaft Stability | High | Moderate |
| Heat Distribution | Balanced | Uneven |
| Vibration Level | Low | Higher |
| Maintenance Frequency | Low | Medium |
| Operational Lifespan | Extended | Standard |
| Application Range | Wide & demanding | Moderate |
With the increasing demand for reliable, high-efficiency blowers, manufacturers are re-engineering blower systems to adopt smart internal configurations. Centralized bearings are now a standard in premium blower lines designed for heavy-duty or precision tasks.
Leading companies in the sector recognize that a minor shift in component positioning can yield major performance gains. For end-users, this means more robust systems, less downtime, and a more competitive operational edge.
Centralized bearing placement in side channel blowers is more than a design tweak — it’s a strategic enhancement that elevates the blower’s overall performance, efficiency, and reliability. From reduced vibration to extended component lifespan, the benefits are clear.
For companies seeking long-term value in their vacuum or pressure systems, choosing a blower with a central bearing setup is a smart and future-ready decision.
